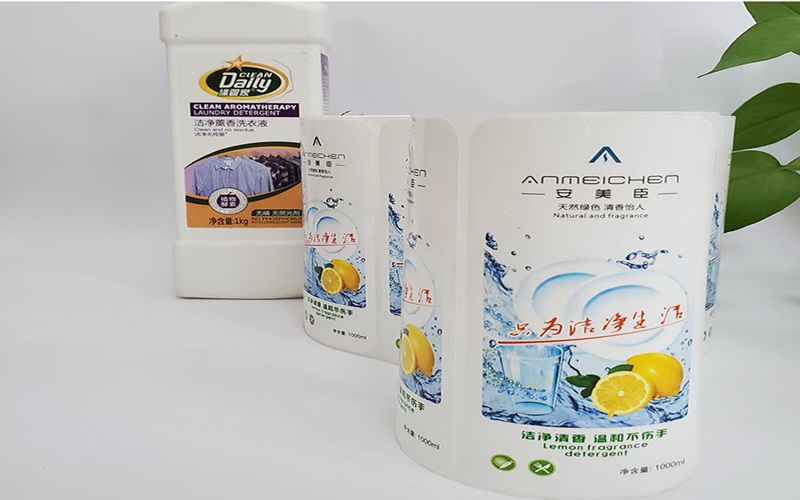

Adhesive Sticker Label Flexo Printing Machine With Camera Inspection System

Machine intruction:

1. The flexo printing machine with camera video web inspection system uses an anilox roller to evenly spread ink, ensuring precise ink distribution and consistent print quality across each print job.

2. Magnetic Power Brake for Unwinding and Rewinding
   Unwinding and rewinding are precisely controlled by a magnetic power brake and clutch. For more advanced control, an automatic tension controller (Mitsubishi, made in Japan) can be used to regulate tension, ensuring consistent operation and high-quality prints.

3. 360° Registration for Each Printing Unit
   Each printing unit in the system adopts a 360° registration feature, which ensures precise alignment and consistent print quality throughout the entire printing process, reducing defects and enhancing print accuracy.

4. Infrared (IR) Drying for Each Printing Unit
   Every printing unit is equipped with its own IR dryer, ensuring that the ink dries efficiently as it is applied, helping to maintain high production speeds without compromising print quality.

5. Automatic Rubber Roller Release
   The rubber roller automatically disengages when parking or running at low speeds, preventing the ink from drying out and ensuring smooth, continuous operation without ink waste.

6. Import Stepless Frequency Conversion for Main Motor
   The main motor uses imported stepless frequency conversion, allowing for smooth, precise adjustments to the machine’s speed. This feature enables optimal operation in a range of printing speeds, enhancing overall efficiency.

7. All-in-One Printing Process
   The flexo printing machine with camera video web inspection system enables unwinding, printing, varnishing (UV), IR drying, laminating, cold stamping, and rewinding to be completed in a single process. This makes it an ideal machine for printing a wide variety of labels, streamlining operations and reducing the need for multiple machines.




8. Model	RY320-5B
   Printing speed	60m/min
   Printing color	1-8 colors
   Max. Web width	320mm
   Max. Printing width	310mm
   Max. Unwinding diameter	600mm
   Max. Rewinding diameter	550mm
   Printing girth	175-320mm
   Precision of registration	±0.10mm
   Dimensions	2100*1100*2500(mm)
   Machine weight	About 2200kg

Standard Configurations:

1. One Mounting Machine – For easy and quick setup.

2. Ceramic Anilox Rollers (5 pcs) – Each group includes one ceramic anilox roller (LPI is optional), ensuring efficient ink transfer and enhanced print quality.

3. Printing Cylinders (15 pcs total) – Three sets of printing cylinders (3 x 5 = 15 pcs) for multiple print designs and flexible production.

4. Turn Bar – For changing the direction of material flow.

5. Lamination Station – For applying additional layers or coatings to printed materials.

6. Rotary Die-Cutting Station – For precise die-cutting, offering flexibility in label production.

7. Unwinding Tension Controller (Mitsubishi, Japan) – Ensures precise control of material tension during unwinding, resulting in smooth print operations.

8. Rewinding Tension Controller (China) – Provides reliable rewinding tension control, ensuring consistent output quality.

Why Choose Our Flexo Printing Machine with Camera Video Web Inspection System?

Our flexo printing machine comes equipped with a camera video web inspection system to provide real-time monitoring of the print job. This inspection system ensures precise print quality by detecting defects such as misprints, misalignments, and color inconsistencies at the earliest stages. By automatically identifying and correcting issues, the web inspection system improves operational efficiency, reduces waste, and ensures consistent, high-quality prints throughout the entire production run.

This advanced machine is ideal for printing facilities that demand the highest standards in flexo printing and label production. With its integrated video web inspection system, the machine offers enhanced print quality assurance and minimizes the risk of defects, ultimately reducing the need for reprints and improving cost efficiency.

Key Benefits:

• Precise Ink Distribution: Achieved through the use of the anilox roller, ensuring consistent and high-quality prints.

• Automatic Tension Control: Ensures smooth operation of unwinding and rewinding, reducing material waste and improving print quality.

• Enhanced Print Accuracy: 360° registration for each printing unit guarantees precise alignment and reduces defects.

• Efficient Drying Process: IR drying ensures quick drying of ink, boosting production speed.

• Real-Time Monitoring: The camera video web inspection system detects defects in real-time, minimizing waste and reprints.

• All-in-One Process: Combines multiple functions such as printing, varnishing, and laminating in one streamlined operation.

Conclusion:

Investing in our flexo printing machine with camera video web inspection system offers a significant advantage to printing facilities looking for reliable, high-quality production. The machine's advanced features, including precise ink distribution, automatic tension control, and integrated web inspection system, provide unmatched performance, while minimizing waste and reducing costs. Whether you're printing labels, packaging, or other materials, this system will ensure consistent, top-notch print quality and increase your production efficiency.
