Why Printing Machinery Parts Web Inspection Systems Are Becoming Essential

In today’s high-speed printing industry, print quality defects can no longer be detected reliably by the human eye. As printing speeds exceed hundreds of meters per minute, even experienced operators may miss color shifts, registration errors, or intermittent defects.

This is why a printing machinery parts web inspection system has become a standard component of modern printing machinery. Installed directly on printing presses, these systems perform real-time visual inspection, ensuring that every meter of printed material meets quality standards before it reaches downstream processes.

What Is a Printing Machinery Parts Web Inspection System?

A printing machinery parts web inspection system is an intelligent camera-based inspection module designed to integrate with:

• Flexographic printing machines

• Rotogravure printing presses

• Offset printing machines

• Label printing machines

• Digital roll-to-roll printers

The system captures stabilized, high-resolution images of fast-moving printed webs, converting motion into clear “still images” that allow operators to identify defects instantly.

Typical defects detected include:

• Color variation and shade mismatch

• Ink streaks, splashes, or ghosting

• Misregistration between color layers

• Missing text, logos, or barcodes

• Pinholes, voids, and surface contamination

How Web Inspection Systems Improve Printing Efficiency

Without a web inspection system, most defects are discovered after printing is completed, leading to:

• Large volumes of wasted material

• Costly reprints

• Missed delivery deadlines

• Customer complaints

A printing machinery parts web inspection system solves this by enabling:

• Continuous online monitoring

• Instant defect visualization

• Immediate corrective actions

• Consistent print quality across long runs

SICHANGO Overseer 100: A New Generation PC-Type Web Inspection System

Among the latest inspection solutions, the SICHANGO Overseer 100 stands out as a PC-type printing machinery parts web inspection system designed for modern, high-demand printing environments.

Unlike traditional controller-based systems, Overseer 100 adopts an industrial PC architecture, offering:

• Faster image processing

• Higher system stability

• More flexible software expansion

• Enhanced defect visualization accuracy

This makes it particularly suitable for flexible packaging and label printing applications.

ACS Mode: Full Panoramic Inspection of Printed Images

One of the key technologies in the SICHANGO Overseer 100 web inspection system is ACS (Auto Capture Scanning) Mode.

ACS allows the camera to:

• Scan horizontally

• Scan vertically

• Perform 100% coverage scanning

By following a defined scanning sequence, the system generates a complete panoramic image of the printed layout.

Why ACS Mode Matters

• Reveals defects outside fixed viewing windows

• Enables full-layout comparison with master samples

• Provides saved panoramic images for quality audits

• Improves setup accuracy and registration alignment

ACS is especially useful during job setup and high-precision printing tasks.

PPS Function: Faster Job Changeovers and Repeat Orders

Another advanced feature is PPS (Print Position Storage).

PPS stores:

• Print image positions

• ROI (inspection windows)

• Reference alignment coordinates

When a repeat order is loaded, the printing machinery parts web inspection system automatically recalls all stored parameters—no manual re-adjustment required.

PPS Benefits

• Shorter setup time

• Consistent inspection across multiple batches

• Reduced operator dependency

• Higher efficiency for repeat jobs

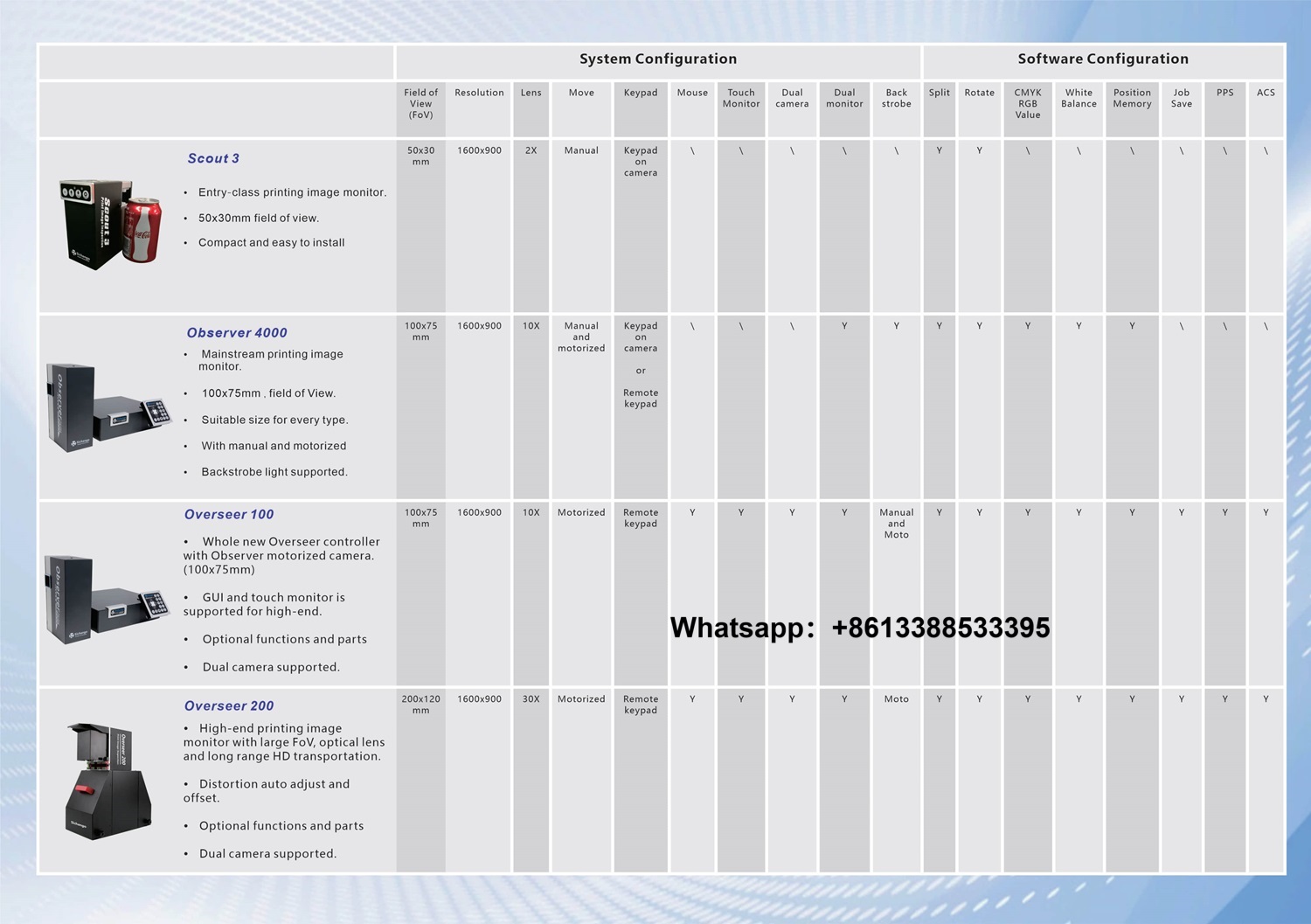

Overview of SICHANGO Web Inspection System Models

SICHANGO offers a complete product range to cover different printing widths and applications:

• Scout 3 – Entry-level system for narrow web printing

• Overseer 100 – PC-type system with ACS & PPS for flexible packaging and labels

• Overseer 200 – High-end wide web inspection system with large FoV and dual-camera support

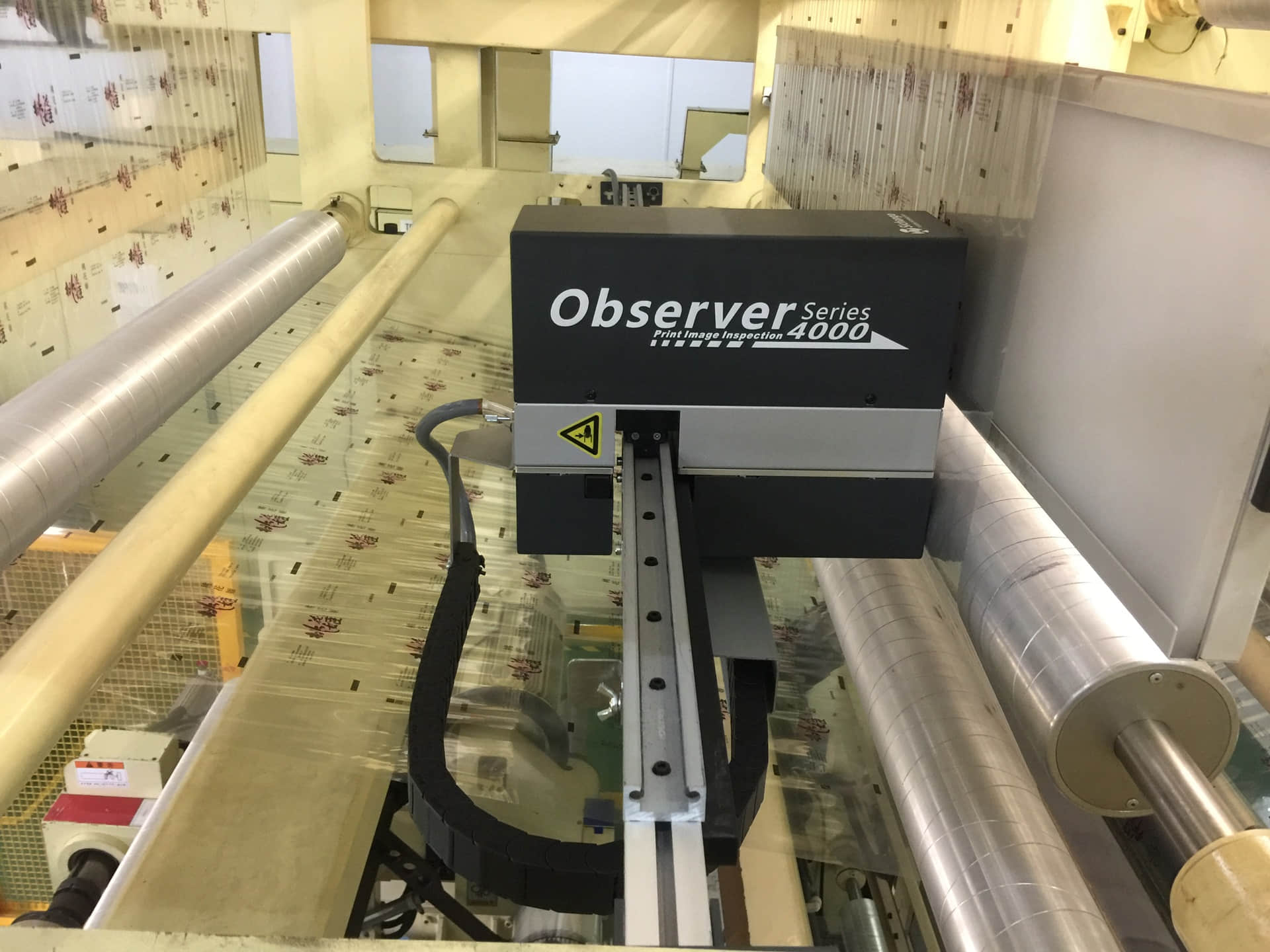

• Observer 4000M – Touchscreen system with motorized zoom and enhanced GUI

• Observer 4000R – Dual-camera inspection for synchronized real-time comparison

All models are designed as printing machinery parts web inspection systems that can be retrofitted or integrated into new printing machines.

Compatible Printing Machinery and Applications

SICHANGO web inspection systems are widely used on:

• Flexographic presses

• Rotogravure presses

• Offset printing machines

• Label presses

• Slitting, laminating, and rewinding machines

They are trusted by users operating printing equipment from brands such as BOBST, Gallus, Mark Andy, Nilpeter, OMET, UTECO, and Weigang.

Why Global Printers Choose SICHANGO

As a professional web inspection system manufacturer in China, SICHANGO combines:

• Advanced PC-based inspection technology

• ACS panoramic scanning and PPS job memory

• Stable performance at high web speeds

• OEM / ODM customization for machine manufacturers

• Global technical support and service

Final Thoughts: A Critical Part of Modern Printing Machinery

A printing machinery parts web inspection system is no longer optional—it is a core productivity and quality assurance component of modern printing lines.

With advanced features like ACS panoramic scanning and PPS print position storage, the SICHANGO Overseer 100 delivers a powerful, future-ready solution for printers seeking higher quality, lower waste, and better operational control.
