Powerful Real-Time Printing Defect Monitoring, Built for Demanding Lines

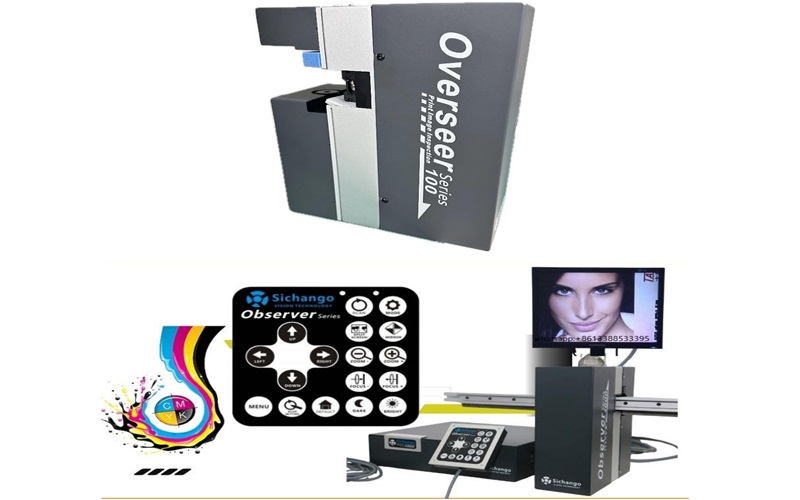

The OVERSEER 100 video web inspection system was engineered for print shops that need reliable, high-speed quality monitoring without the complexity or cost of enterprise-level systems. Whether you run self-adhesive labels, shrink sleeves, flexible packaging, or non-woven material — the OVERSEER 100 puts a trained eye on every meter of web, every shift.
Unlike basic camera monitors, the OVERSEER 100 integrates active defect detection with a high-speed CMOS sensor and true 10× optical zoom — meaning what your operator sees on-screen is a crisp, undistorted image of the live print, not a digitally degraded approximation. Registration marks, fine dot gain, ink density shifts, and mechanical streaks are all visible and alertable in real time.
Core Capabilities of the OVERSEER 100
10× True Optical Zoom
Genuine optical magnification — not digital zoom — delivers sharp, color-accurate images that reveal fine ink dots, registration micro-shifts, and surface defects invisible to the naked eye.
Sub-Millisecond Defect Alerts
CMOS-based real-time processing detects and flags defects in milliseconds. Operators receive instant on-screen alerts with the exact web position of the anomaly.
Automatic Registration Detection
Built-in registration mark monitoring continuously tracks color-to-color alignment. Drift is caught immediately — before it becomes visible waste.
Intuitive User Interface
Designed for press operators, not engineers. Setup takes minutes. Smart memory functions recall job settings automatically — reducing setup time across repeat jobs.
Optimized LED Illumination
Custom-designed LED light source ensures balanced, flicker-free illumination across the web — essential for accurate color reproduction on metallized, glossy, and transparent substrates.
Universal Press Compatibility
Mounts on any flexo, digital, offset, or gravure press. Global voltage compatibility. Most installations are fully operational the same day — no automation engineers required.
Technical Specifications
| Specification | OVERSEER 100 |
|---|---|
| Max Press Speed | 600 m/min |
| Camera Type | High-Speed Industrial CMOS |
| Optical Zoom | 10× True Optical (not digital) |
| Defect Alert Speed | < 1 millisecond |
| Web Width Coverage | Narrow web to mid-web (configurable) |
| Inspection Mode | Real-time inline / continuous monitoring |
| Registration Detection | Automatic — color-to-color tracking |
| LED Light Source | Custom-designed, balanced spectrum |
| Substrate Compatibility | Paper, film, metallized, non-woven, transparent |
| Printing Process | Flexo, digital, offset, gravure, rotary screen |
| Installation | Plug-and-play, same-day operational |
| Voltage | Universal (global compatibility) |
| Interface | Operator-friendly GUI, smart job memory |
| After-Sales | 24/7 remote support + parts dispatch |
Industries & Applications
The OVERSEER 100 is optimized for narrow web and label printing inspection, but its flexibility covers a wide range of converting environments where real-time quality monitoring is business-critical.
Primary Use Case
Narrow Web Label Printing
Self-adhesive labels, sticker rolls, shrink sleeves. Eliminate registration errors, ink voids, and color shifts before they reach the rewinder.
Primary Use Case
Flexographic Printing
Monitor anilox consistency, ink transfer, plate wear, and dot gain across every print station — at full press speed.
Strong Fit
Digital Label Printing
High-resolution monitoring for inkjet and toner-based digital presses. Catch banding, head failures, and color inconsistencies in real time.
Strong Fit
Flexible Packaging
Food, beverage, and personal care packaging lines. Detect smearing, misregistration, and surface defects before converting.
Also Used In
Non-Woven Material Production
Medical and hygiene non-woven lines where consistent surface appearance and defect-free output is essential.
Also Used In
In-Mold & Security Labels
High-precision label formats requiring zero tolerance for registration or color deviation. OVERSEER 100 provides continuous surveillance at speed.

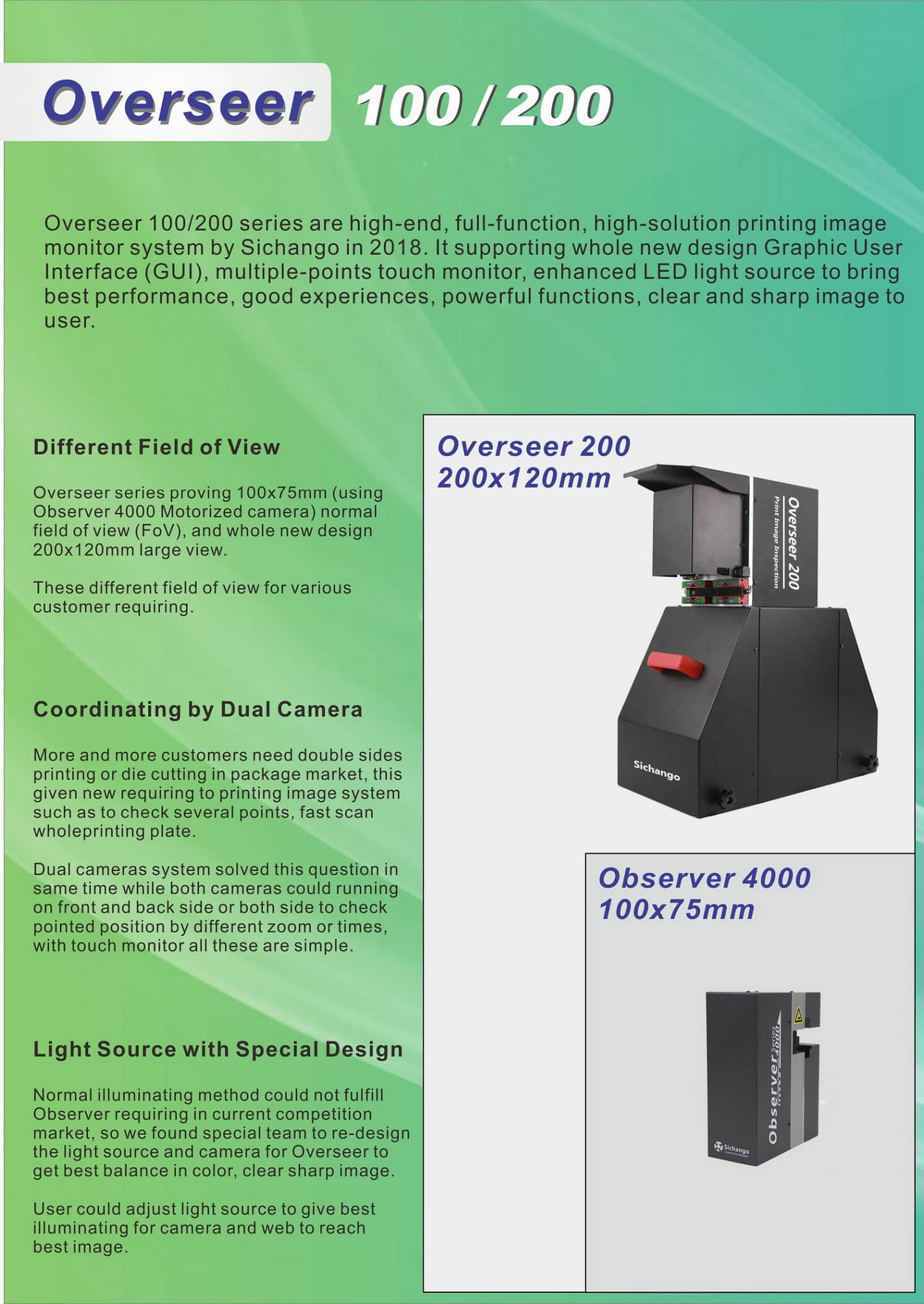

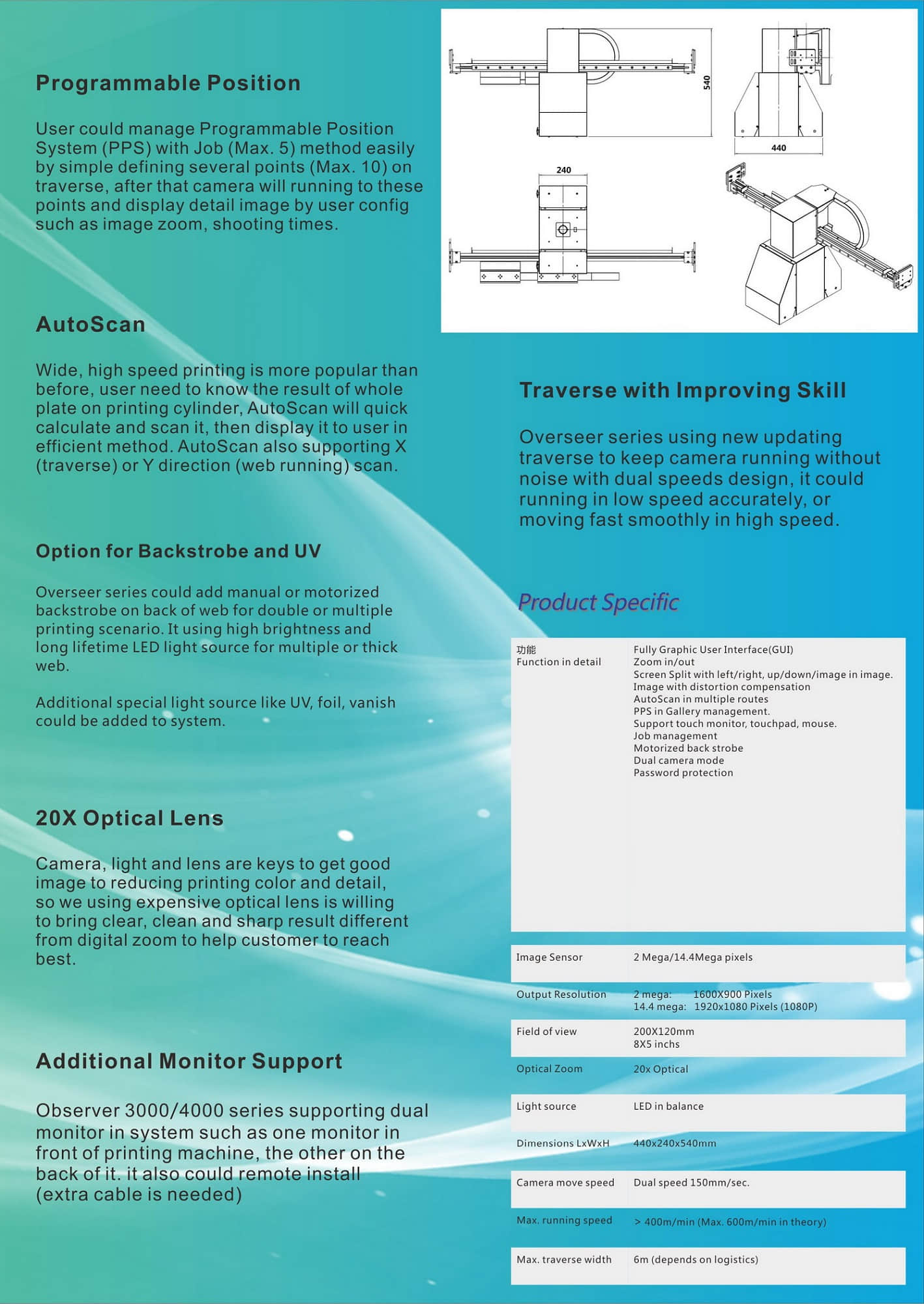

Choosing the Right System: OVERSEER 100 vs OVERSEER 200
Both systems deliver SICHANGO's industry-leading real-time print inspection. The right choice depends on your production scale, automation requirements, and budget.
| Feature | OVERSEER 100 | OVERSEER 200 |
|---|---|---|
| Real-time video monitoring | ✓ Included | ✓ Included |
| Optical zoom | 10× true optical | Premium optical zoom lenses |
| Registration detection | ✓ Automatic | ✓ Advanced |
| Motorized traverse | Manual positioning | ✓ Dual-speed motorized |
| Multi-point AutoScan | — | ✓ Up to 10 inspection points |
| Dual-sided inspection | — | ✓ Front + back simultaneously |
| Touchscreen GUI | Standard UI | ✓ Multi-point touchscreen |
| Field of view | Narrow to mid-web | 200×120mm large view |
| Best suited for | Label, flexo, digital narrow web | High-end / wide web / automated lines |
| Price tier | Cost-effective entry/mid | Premium |
What Customers Say About the OVERSEER 100
★★★★★
"Scout 3 and Overseer 100 work perfectly together for narrow web applications. Real-time monitoring is spot-on, and it's incredibly easy to operate. Our team was running live inspections the same day it arrived."
Label Printer, 4-color flexo press
★★★★★
"Excellent system for print quality monitoring. Color registration improved dramatically compared to manual inspection. We now catch registration drift before it becomes visible waste. Highly recommended."
Packaging Converter
★★★★★
"Professional service and fast shipping. The system integrates perfectly with our narrow web digital press. The optical zoom quality is far better than systems we tested from other suppliers at a similar price point."
Digital Label Printer
Frequently Asked Questions
What is the SICHANGO OVERSEER 100 video web inspection system?
The OVERSEER 100 is a real-time video web inspection system for flexo and digital printing presses. It uses a high-speed CMOS camera with 10× true optical zoom to monitor print quality at up to 600 m/min, detecting color misregistration, streaks, ink smearing, and other defects in milliseconds — without stopping the press.
Is the OVERSEER 100 suitable for narrow web label printing?
Yes. The OVERSEER 100 is specifically optimized for narrow web and label printing inspection — including self-adhesive labels, sticker rolls, shrink sleeves, and in-mold labels. It is one of SICHANGO's most popular systems for label converters globally.
How fast can the OVERSEER 100 detect defects on a running press?
The system detects and alerts in under 1 millisecond at press speeds up to 600 m/min. Operators receive on-screen alerts with the exact web location of the detected anomaly — before significant waste has accumulated.
Do I need training or specialist engineers to install the OVERSEER 100?
No specialist engineers are required. The OVERSEER 100's plug-and-play design means most press operators are running live inspections within minutes of installation. SICHANGO provides 24/7 remote support and full documentation.
What is the difference between OVERSEER 100 and OVERSEER 200?
The OVERSEER 100 is an ideal cost-effective solution for narrow web, flexo, and digital printing with 10× optical zoom and automatic registration detection. The OVERSEER 200 adds motorized traverse, AutoScan (up to 10 inspection points), dual-sided inspection, a 200×120mm wide field of view, and a touchscreen GUI — suited to high-automation or wide-web environments.
What print defects does the OVERSEER 100 detect?
Color misregistration, ink smearing, streaks and banding, dot missing, color density variation, pinholes, surface scratches, and any visual deviation from the print standard — all in real time at full press speed.
How do I get a factory price or demo for the OVERSEER 100?
SICHANGO sells factory direct worldwide — no distributor markup. Contact the team via the website to request a price quote, live video demo, or technical consultation. Shipping to 30+ countries is available.
