Technology Overview
What Is a Web Inspection System for Printing?
Understanding how real-time camera inspection eliminates defects before they reach your customers.

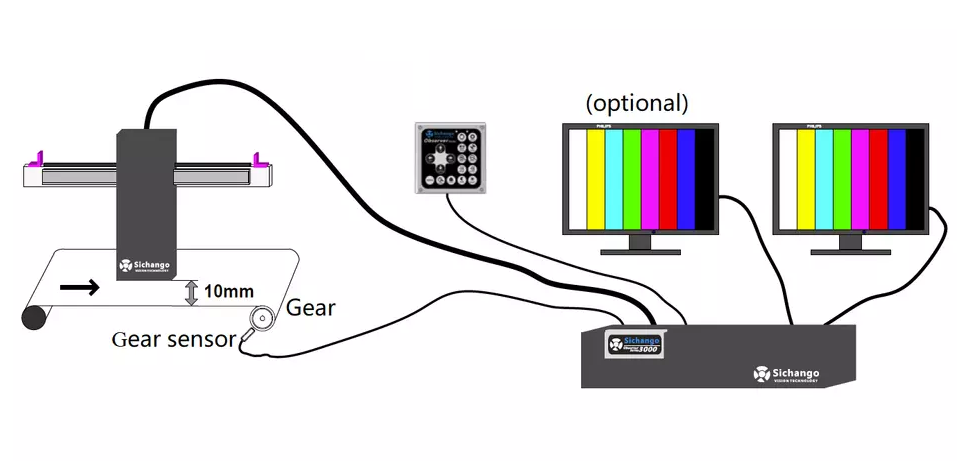

A web inspection system is a camera-based quality control solution mounted on a printing press or converting line. High-resolution CCD or CMOS cameras continuously monitor the moving web of printed material — whether film, labels, paper, or flexible packaging — capturing images in real time and comparing them against a reference standard.
When the system detects a defect — such as a color inconsistency, registration drift, missing element, barcode error, or surface contamination — it instantly alerts the operator with a visual and audible alarm. Advanced systems like the SICHANGO Overseer 200 can also log defect data, generate production reports, and trigger automatic marking or slitter signals to isolate bad sections downstream.
In high-speed flexographic, gravure, and label printing environments, manual visual inspection is simply not fast enough. A SICHANGO web inspection system provides 100% coverage of every metre of printed material, eliminating the human error that results in costly customer returns, material waste, and compliance failures.
Full Product Range
SICHANGO Web Inspection System Models
Four purpose-built models covering every press size, speed, and budget. All manufactured direct from Shenzhen — no middlemen.
Best for Wide Web

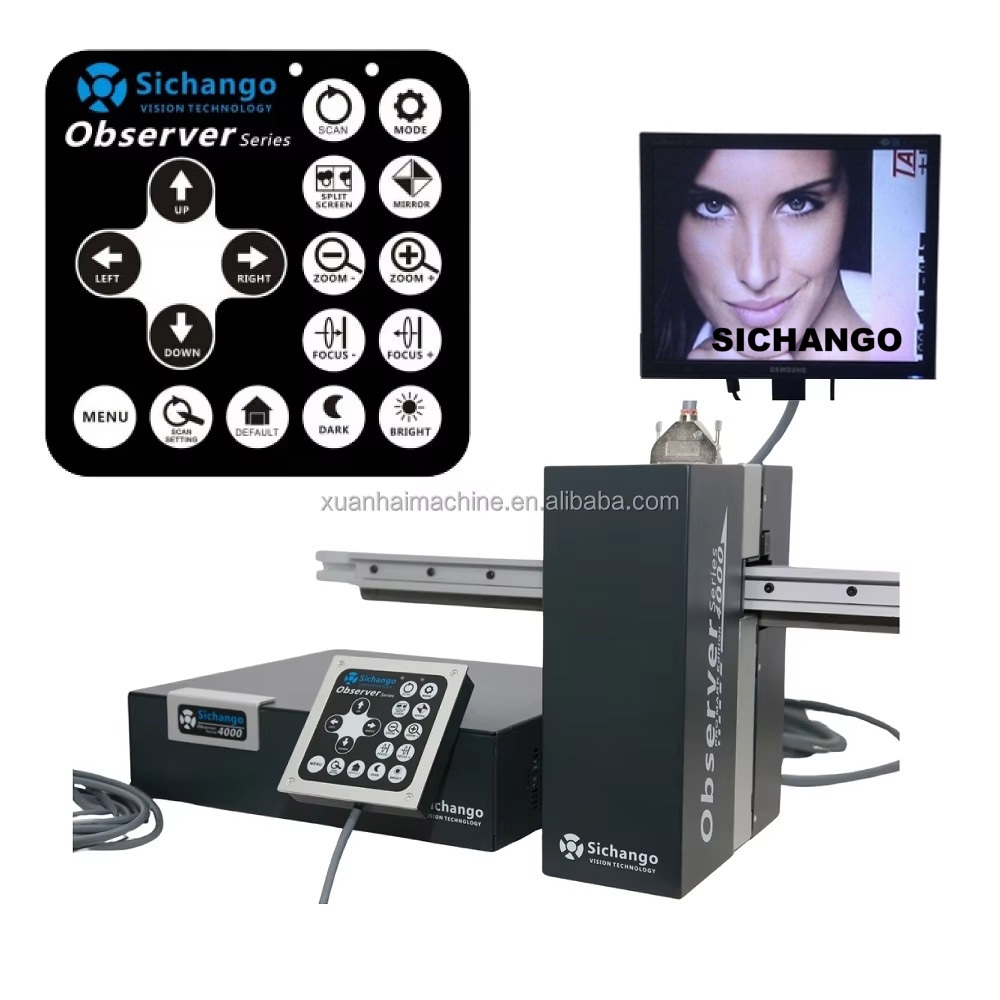

SICHANGO Observer 4000 / 4000M
Top-tier motorized camera inspection for demanding flexographic and gravure lines
Web Type
Wide Web
Drive
Motorized Traverse
Best For
Flexo / Gravure
Zoom
Optical (Premium)
Motorized camera traverse for full-width scanning (X and Y axis AutoScan on 4000M)
High-resolution imaging for fine defect detection at full line speed
Compatible with flexo, gravure, offset, and digital presses
Supports OEM integration for major press manufacturers
Trusted across Europe, Americas, and Asia Pacific
Most Compact
SICHANGO Scout 3
The smallest industrial inspection camera — ideal for narrow web and label printing
Web Type
Narrow Web
Size
Ultra-Compact
Best For
Labels / Stickers
Operation
Inline, Easy Setup
Smallest footprint in the SICHANGO range — fits where larger systems cannot
Effective for cross-line checking and continuous quality monitoring
Pairs perfectly with the Observer 4000M for comprehensive inspection
Intuitive interface — operators trained in minutes
Cost-efficient entry into 100% print inspection
High Speed
SICHANGO Overseer 100
Powerful real-time defect monitoring for high-speed flexo and digital label lines
Web Type
Narrow–Mid Web
Speed
High-Speed Rated
Best For
Flexo / Digital
Reliability
Maximum Uptime
Delivers maximum reliability under demanding continuous production conditions
Real-time print defect monitoring with instant operator alert
Built for high-speed label, pharmaceutical, and food packaging lines
Dual-camera configuration (Overseer 100 Double) available for simultaneous front/back inspection
Compact design with straightforward integration
Most Advanced · AI-Powered
SICHANGO Overseer 200
AI-powered smart inspection with dual-camera, AutoScan, and touchscreen GUI — up to 600 m/min
Max Speed
600 m/min
View Area
200 × 120 mm
Zoom
Optical (No Digital)
Interface
Multi-Touch GUI
Brand-new Graphic User Interface with multi-point touchscreen operation
AutoScan: full-width scanning across X and Y axes, reducing operator workload
Dual-speed motorized traverse — smooth and noise-free at high production speeds
Overseer 200 Dual: simultaneous front-and-back inspection with independent or synchronized control
Premium optical zoom — accurate color reproduction, no digital distortion
Web-to-sheet and roll-to-roll compatible
Model Comparison
SICHANGO Web Inspection System Comparison
Not sure which model fits your press? Use this quick comparison to find the right system for your production requirements.
| Feature | Scout 3 | Observer 4000M | Overseer 100 | Overseer 200 Top Pick |
|---|---|---|---|---|
| Best Application | Narrow web, labels | Wide web, flexo/gravure | High-speed labels/flexo | All press types, premium lines |
| Max Speed | Contact us | Contact us | High-speed rated | 600 m/min |
| Motorized Traverse | — | ✓ | ✓ | ✓ Dual-speed |
| AutoScan (X + Y Axis) | — | ✓ (4000M) | ✓ | ✓ |
| Dual Camera (Front+Back) | — | — | ✓ (Double model) | ✓ (Dual model) |
| AI-Powered Inspection | — | — | — | ✓ |
| Touchscreen GUI | — | — | ✓ | ✓ Multi-touch |
| Optical Zoom Lens | — | ✓ | ✓ | ✓ Premium |
| Web-to-Sheet Compatible | — | — | — | ✓ |
| Ideal Entry Point | ✓ (Most affordable) | — | — | — |
| Flexo Printing | ✓ | ✓ | ✓ | ✓ |
| Gravure Printing | ✓ | ✓ | ✓ | ✓ |
| Digital Printing | ✓ | ✓ | ✓ | ✓ |
| Back strobe | — | ✓ | ✓ | ✓ |
| UV light 365nm(Opitional) | — | — | — | ✓ |
Industries Served
Which Industries Use SICHANGO Web Inspection Systems?
From pharmaceutical labeling to flexible packaging, SICHANGO camera systems protect print quality across demanding industries worldwide.
Flexible Packaging
Detect registration errors, color shifts, and ink smudging on film, foil, and laminate materials at full converting speeds.
Label & Sticker Printing
Eliminate micro-defects on narrow web label materials. Ensure barcode readability and color accuracy on every roll.
Pharmaceutical Packaging
Verify batch numbers, expiry dates, barcodes, and regulatory text on compliance-critical pharmaceutical labels and cartons.
Food & Beverage Packaging
Maintain consistent brand colors and ensure ingredient text accuracy on high-volume food packaging production lines.
Film & Foil Converting
Identify coating inconsistencies, edge wrinkles, and missing print zones on film, foil, and non-woven converting lines.
Security Printing
Maintain perfect register and color accuracy for banknotes, tax labels, certificates, and other security-printed documents.
Why SICHANGO
Why Choose SICHANGO as Your Web Inspection System Supplier?
Founded in 2009, Shenzhen Sichango Vision Technology has delivered camera inspection systems to print and converting customers in over 50 countries.
01
Factory-Direct Pricing
We manufacture every system in-house at our Shenzhen facility. No distributors, no middlemen — you deal directly with the engineering and sales team that built your machine.
02
15+ Years of Print Inspection Expertise
Since 2009, we've accumulated deep domain knowledge in print quality inspection across flexo, gravure, digital, and label printing environments globally.
03
OEM Partner to Global Press Brands
SICHANGO provides OEM camera inspection systems for several of the world's leading press manufacturers — a testament to the quality and reliability of our engineering.
04
24-Hour After-Sales Support
Our technical support team is available around the clock. Remote troubleshooting, spare parts, and on-site assistance are available to customers worldwide.
05
Intuitive, Low-Training Operation
All SICHANGO systems are designed for simplicity. Most operators are up and running within minutes — no specialist vision-system training required.
06
Customizable for Any Press Configuration
From camera mounting brackets to custom software integrations, SICHANGO systems can be tailored to fit virtually any printing or converting machine configuration.
Customer Reviews
What Printers Say About SICHANGO
Real feedback from printing and converting operations across the Americas, Europe, and Asia Pacific.
★★★★★
An excellent system for checking print quality. Our engineer is extremely satisfied. Color registration is much faster than before — it has genuinely improved our overall efficiency.
Label Printer · USA
★★★★★
The Scout 3 is highly effective for checking cross lines and works perfectly in combination with the 4000M. Incredibly easy to operate and provides continuous monitoring throughout the process.
Flexo Converter · Colombia
★★★★★
The Overseer 200 is a high-tech solution that offers excellent value for money. We are very satisfied with the still-image print quality checking performance. Highly recommended.
Packaging Printer · Russia
★★★★★
Professional service and fast shipping. A special thanks to Linda for excellent support throughout the process. The system performs exactly as described. Highly recommend.
Print Converter · Germany
FAQ
Frequently Asked Questions About Web Inspection Systems
Common questions from printers and converters evaluating SICHANGO inspection systems.
A web inspection system is a camera-based quality control solution that monitors printed material moving at high speed through a press. It detects defects such as color inconsistencies, registration errors, missing print, and smudges in real time, alerting operators before flawed product reaches the end of the line.
The SICHANGO Scout 3 and Overseer 100 are both optimized for narrow web and label applications. Scout 3 is the most compact and cost-efficient choice; Overseer 100 provides advanced monitoring capability for higher-speed label lines.
SICHANGO web inspection systems are compatible with flexographic, gravure, digital, and rotary offset printing presses. They can also be integrated on film, non-woven, and paper converting lines.
The Overseer 200 supports inspection at speeds up to 600 metres per minute with its dual-speed motorized traverse. Contact SICHANGO for confirmed speed ratings on the Observer 4000M, Scout 3, and Overseer 100 for your specific application.
Yes. SICHANGO provides 24-hour online after-sales support, spare parts supply, and remote technical guidance. On-site installation and commissioning assistance is also available for customers worldwide.
Yes. The Overseer 200 Dual configuration extends monitoring to both the front and back of the web simultaneously, with independent or synchronized inspection, programmable zoom and position (PPS), and split-screen real-time monitoring.
