100% Print Inspection System | OC 330/450 Web Inspection for Flexo & Label Printing | SICHANGO
AI-Native · 100% Coverage · Industry 4.0 Ready
The 100% Print Inspection System Built for Zero-Defect Production
SICHANGO OC 330/450 with Scout 5 combines 24-bit color line-scan imaging, AI defect classification, and plug-and-play press integration — inspecting every square millimeter of your web at up to 200 m/min, with zero sample-based blind spots.
99%+Detection Accuracy
200m/minMax Inspection Speed
<1dayInstallation Time
30%Fewer False Rejects vs. Rule-Based Systems
Need higher throughput? We also offer a 600 m/min high-speed variant — contact us to configure yours.

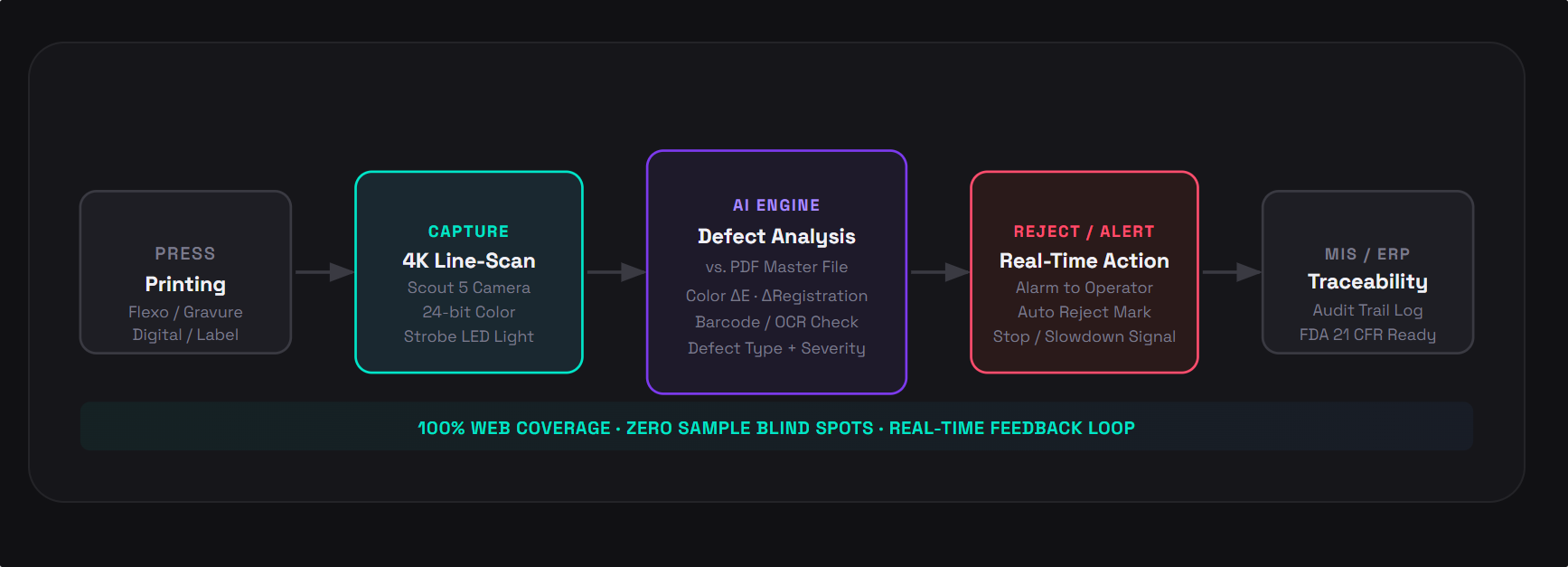

How It Works
The 100% Inspection Workflow
From raw web to certified output — every frame analyzed, every defect classified, every rejection logged.
Detection Capability
Every Defect Type. Every Substrate.
The OC 330/450 AI engine identifies deviations from the approved PDF master in real time — not after the job is finished.
Dot Missing / Dot Gain
Color Misregistration
Streaks & Banding
Smearing / Ink Spread
Pinholes & Voids
Surface Scratches
Color Density ΔE Deviation
Missing Print / Skip
Barcode Failure (1D/2D)
QR Code Errors
OCR Text Illegibility
Overprinting / Ghost

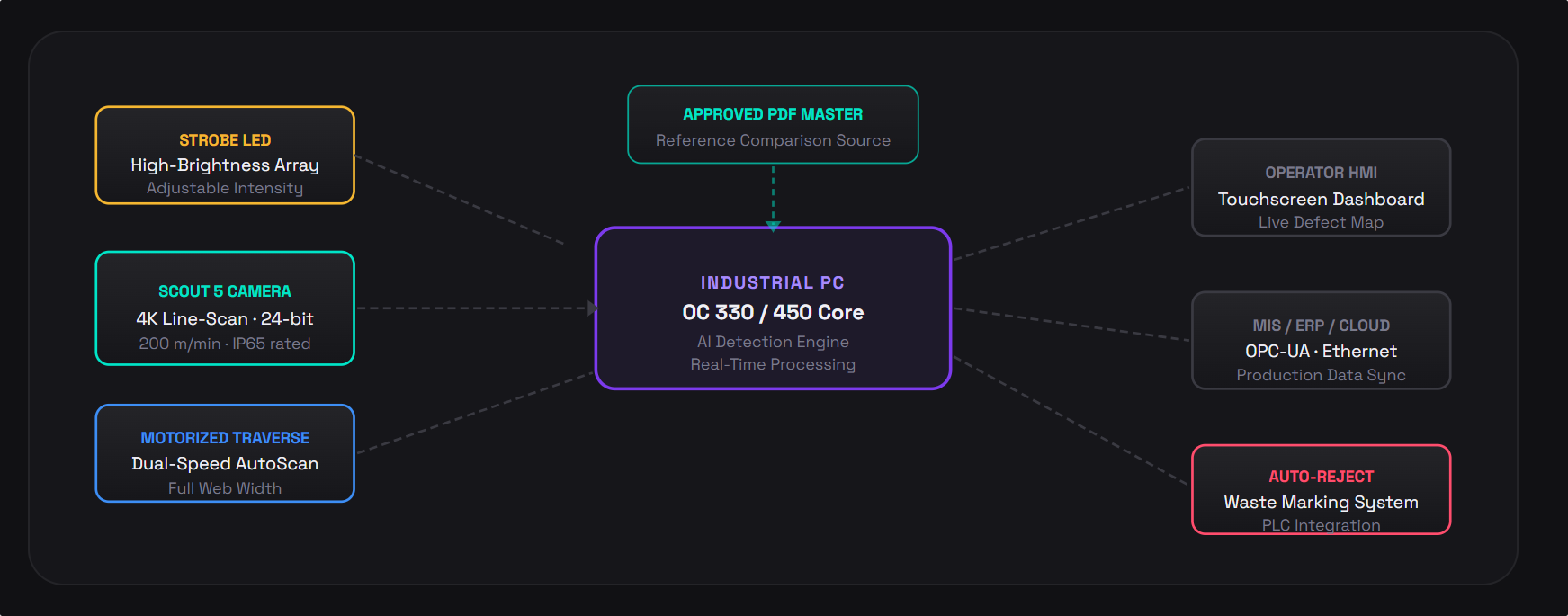

System Architecture
OC 330/450 + Scout 5 — Hardware Overview
Modular, press-mountable, field-configurable. No automation engineers required.
Technical Specifications
OC 330 / OC 450 Full Specification Sheet
Factory-verified data. No marketing estimates.
Custom configurations available for wide-web applications over 450 mm, dual-sided inspection, and pharmaceutical cleanroom environments. Contact our engineering team for a tailored quotation.
Looking for maximum press throughput? We also offer a 600 m/min high-speed variant of the OC series — engineered for the most demanding wide-web gravure and flexo lines. Contact our team to choose the right speed tier for your production environment.
Competitor Comparison
SICHANGO vs. AVT · BST · Erhardt+Leimer
As the machine vision quality control market races toward $89.7 billion by 2033, technical parity with European brands is now table stakes. The differentiator is commercial flexibility.
| Feature / Criteria | SICHANGO OC Series | AVT | BST / Erhardt+Leimer |
|---|---|---|---|
| AI-Native Detection Engine | ✓ Primary AI model | ◑ Bolt-on AI layer | ◑ Rule-based + AI overlay |
| Installation Time | ✓ < 1 day | 2 – 5 days | 2 – 5 days |
| MIS/ERP Integration (Standard) | ✓ Included | Optional / paid add-on | Optional / paid add-on |
| Distributor Markup | ✓ Factory Direct | Multi-tier distribution | Multi-tier distribution |
| FDA 21 CFR / EU GMP Compliance | ✓ Standard | ✓ | ✓ |
| Hardware Customization | ✓ Flexible | ✗ Fixed models | ◑ Limited |
| Detection Accuracy | ✓ > 99% | > 99% | > 99% |
| Max Speed | ✓ 200 m/min | 200 m/min | 200 m/min |
| Non-Woven / Hygiene Film Support | ✓ | ◑ Limited | ✓ |
| On-Site Demo / Evaluation Period | ✓ Available | ◑ Limited regions | ◑ Limited regions |
Applications
Built for Your Industry
The OC 330/450 is engineered for any roll-to-roll or sheet-fed process where defects cannot be fixed after the fact — whether that's pharmaceutical labeling subject to recall risk, flexible packaging exposed to consumer scrutiny, or hygiene non-wovens with zero-tolerance quality standards.
Flexible Packaging Label Printing Pharmaceutical Labeling Food & Beverage Packaging Folding Cartons Security Printing Non-Woven / Hygiene Digital Inkjet Web Gravure Printing Narrow-Web Flexo
Why 100% vs. Sampling
The Sampling Problem
Traditional QC checks 0.1–1% of output. On a 200 m/min press, that means 39,900 meters of uninspected web per hour. At even 0.01% defect rate, you're shipping thousands of defective labels before anyone notices.
Sampling cannot catch intermittent defects that appear once per roll
Human fatigue compounds error rate over multi-hour shifts
Post-production inspection cannot prevent defective shipments
Pharmaceutical and food industries face legal liability from label errors
Brand owners increasingly mandate 100% digital proof at delivery
Return on Investment
The Economics of 100% Inspection
Production managers consistently find the math more compelling than expected — particularly in pharmaceutical and food-grade applications where a single mislabeling event can trigger a recall costing millions.
↓70%
Reduction in waste & reprints within 6 months of installation
↑30%
Improvement in detection accuracy over rule-based systems
↓60%
Drop in false rejection rates with AI classification
24/7
Consistent inspection — zero fatigue, zero shift handover error
1 day
Typical payback horizon shortening vs. European-brand alternatives
$0
Distributor markup — direct factory pricing on all OC units
"For pharmaceutical packaging, where a single mislabeling event can trigger a market recall costing millions, the ROI calculation looks completely different. We estimated 18-month payback before installation. We hit it in 9."— Production Quality Manager, pharma label printer, EU market
Key Features
What Makes OC 330/450 Different
AI-First Architecture
The AI model is the primary detection engine — not a reclassification layer bolted onto a rules engine. Every frame is AI-classified by type, severity, and production context.
Panoramic ACS Scan Mode
Auto Capture Scanning generates a complete panoramic image of the printed layout during job setup — ensuring zero missed coverage on complex multi-repeat labels.
Print Position Storage (PPS)
Save all inspection parameters per job. On repeat orders, the system recalls settings automatically — no manual re-adjustment, no operator-dependent setup variance.
Real-Time ΔE Color Control
CMYK density measured per print unit against PDF-approved standards. Color deviation is flagged in ΔE (CIE 2000) — the perceptual standard used by brand owners globally.
FDA & EU GMP Traceability
Full audit trail logging, batch traceability reports, and GS1 DataMatrix verification compliant with FDA 21 CFR Part 11 and DSCSA track-and-trace mandates effective 2025.
Plug-and-Play Integration
Standard OPC-UA, Ethernet, SQL, and MIS/ERP connectivity included. 95% of customers are fully operational within one working day — no automation engineers needed.
Frequently Asked Questions
Questions Buyers Ask Before Purchasing
What is a 100% print inspection system and how does it differ from random sampling QC?
A 100% print inspection system uses high-speed line-scan cameras and AI algorithms to examine every square millimeter of printed material in real time — not random samples. On a 200 m/min press, sampling at 1% means 396 meters of uninspected web per minute. The OC 330/450 creates a zero-blind-spot feedback loop: every defect is detected the moment it occurs, allowing correction before significant material is wasted.
How does the SICHANGO OC 330/450 compare to AVT, BST, and Erhardt+Leimer?
At the technical level, SICHANGO matches European systems in AI detection accuracy (99%+) and inspection speed (up to 200 m/min). The commercial differentiation is meaningful: factory-direct pricing with no distributor markup, installation in under one day versus 2–5 days for European brands, MIS/ERP integration included as standard (not an optional add-on), and greater hardware customization flexibility for non-standard web widths or substrates.
What defect types does the system detect?
The OC series AI engine detects: dot-missing, dot gain, smearing, color misregistration, streaks, pinholes, scratches, overprinting/ghosting, missing or skipped print, barcode failures (1D and 2D including GS1 DataMatrix and QR codes), OCR text illegibility, color density deviation (ΔE), and any structural deviation from the approved PDF master file — all in real time at full press speed.
Is the system compatible with pharmaceutical regulatory requirements?
Yes. The OC series provides 100% GS1 DataMatrix and barcode verification with ISO/IEC 15415 grade output, batch traceability reports, and audit trail logging compatible with FDA 21 CFR Part 11 and EU GMP documentation requirements. It supports DSCSA track-and-trace mandates and can be configured for serialization logging in pharmaceutical packaging lines.
What printing processes is the OC 330/450 compatible with?
The system is compatible with flexographic printing (narrow and wide web), rotogravure, offset, digital inkjet, laser printing, and direct-to-roll label printing. It supports paper, plastic film (including transparent and metallized), cardboard, non-woven fabrics, and hygiene films. Custom lighting and camera configurations are available for reflective or textured substrates.
How quickly can the system be installed and operational?
95% of SICHANGO customers are fully operational within one working day. The modular plug-and-play design requires only power and network connectivity — no specialist automation engineers needed. The PPS (Print Position Storage) system means that once a job is set up, repeat orders recall all parameters automatically with no manual re-adjustment.
Ready to Eliminate Print Defects?
Start Your 100% Inspection Journey
Join 60%+ of global high-speed printing facilities that have adopted automated print inspection. Request a live demonstration on your substrate and press speed.
ACCREDITED
FDA 21 CFR · EU GMP · ISO
SPEED
Up to 200 m/min
ACCURACY
> 99% AI Detection
INSTALL
< 1 Working Day
