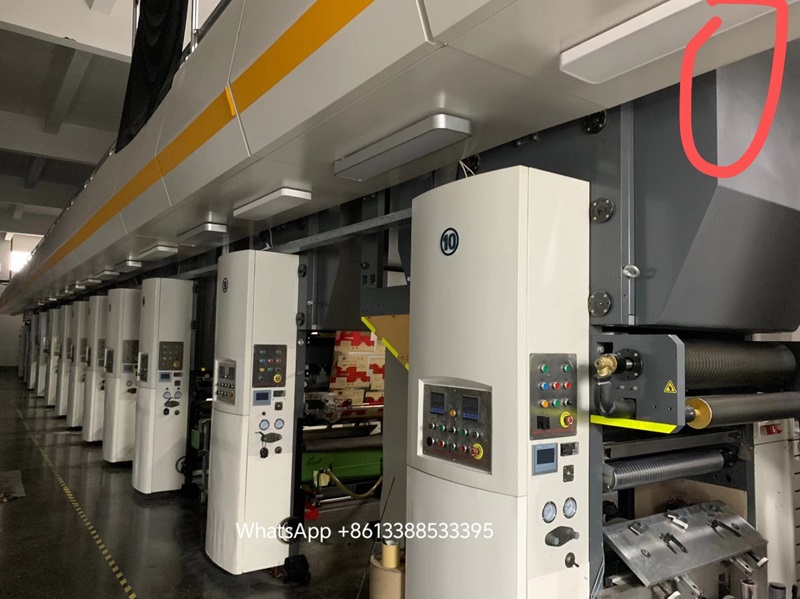

Real-Time Shade Variation Detection for Rotogravure Presses

In the highly competitive packaging and printing industry, even the slightest shade variation or misregistration during rotogravure printing can result in rejected jobs, wasted material, and serious financial losses. The SICHANGO OVERSEER 200 is specifically engineered as an automatic web inspection system for rotogravure printing machines, helping businesses eliminate such risks through advanced real-time defect detection.

Why Shade Mismatch Is a Hidden Cost in Rotogravure Printing

Shade mismatches are often overlooked by human operators during long print runs. These subtle color variations may go unnoticed at first but become highly visible in the final packaged product — compromising brand consistency and customer trust.

Our clients report significant losses due to:

• Unnoticed tone mismatches across print batches

• Manual inspection errors

• Delayed defect detection during high-speed jobs

SICHANGO OVERSEER 200 solves this with high-precision AI-powered print monitoring.

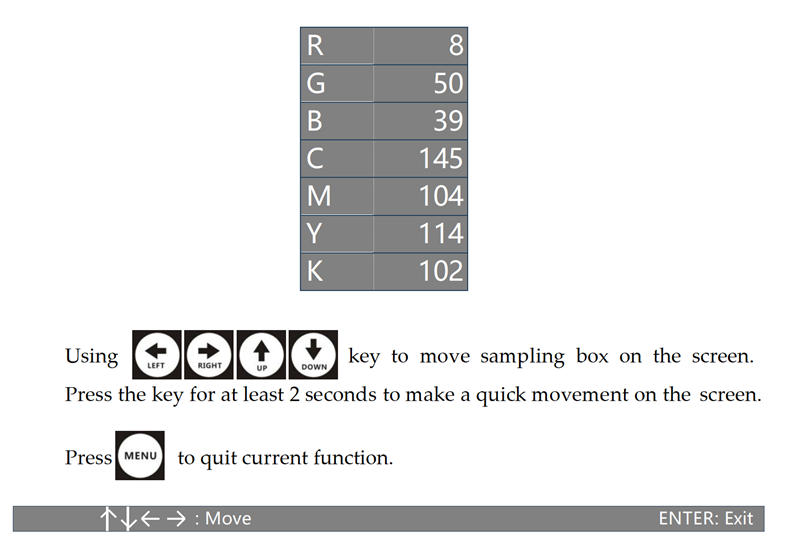

CMYK value detective

Press  into menu and use  to CMYK function, press  again to into CMYK function.

When into this function, “analysis data zone” will show on right top screen, and with a cursor like . The RGB/CMYK data of color in the cursor

will show in the analysis data zone.

Key Features of SICHANGO OVERSEER 200 on Rotogravure Printing Machines

• ✅ High-Resolution Camera System
  Detects micro-level print defects, including color shade mismatches, misregistration, streaks, smudges, and missing print elements.

• ✅ Real-Time Monitoring
  Automatically tracks print quality throughout the entire web, eliminating the need for manual checking.

• ✅ Advanced Lighting & Imaging
  Ensures clear visibility of printed material across metallic films, paper, and plastic substrates — ideal for rotogravure applications.

• ✅ Intelligent Software Algorithms
  Accurately identifies, classifies, and logs all print defects — enabling fast root cause analysis and continuous improvement.

• ✅ Operator Job Reports
  auto-generated print quality reports for traceability.

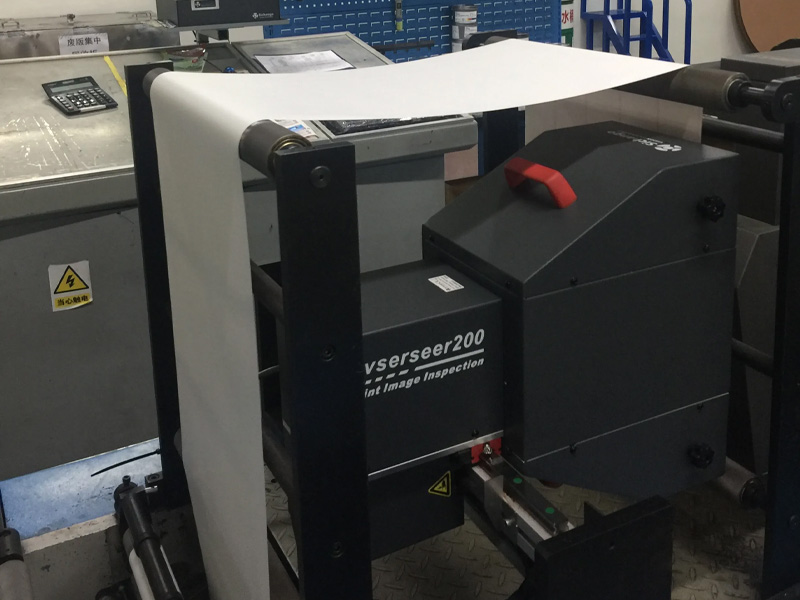

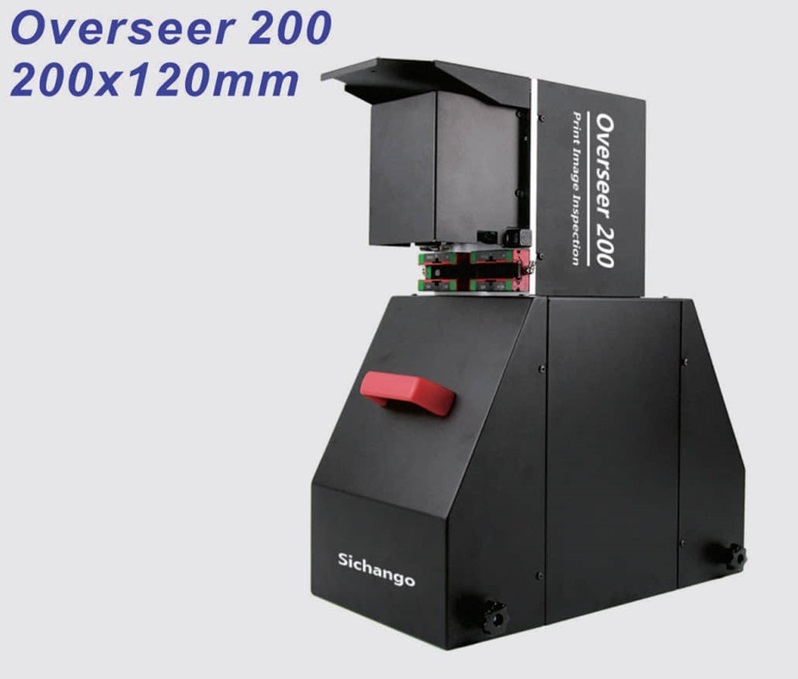

• SICHANGO Overseer 200: AI-Ready Video Web Inspection System for High-Speed Printing Lines

• The Overseer 200 by SICHANGO is a next-generation video control web inspection system for printing, engineered for high-speed, high-precision flexo, gravure, and label production lines. Combining real-time image capture, intelligent defect detection, and an intuitive user interface, Overseer 200 ensures unparalleled print quality and production efficiency.

• ✅ Precision Monitoring with Ultra-Clear Imaging

• Equipped with a 12-megapixel camera sensor and a true 20x optical zoom lens, the system delivers ultra-sharp, full-color imaging without digital distortion. The wide 200 × 120 mm field of view supports complete web monitoring, ideal for labels, flexible packaging, and nonwoven materials.

• ✅ Intelligent Lighting System

• The high-brightness LED light source is engineered for various substrates, with adjustable intensity to highlight even the most subtle defects—perfect for paper, plastic film, or metallic foil.

• ✅ Advanced AutoScan Defect Detection

• With AutoScan technology, Overseer 200 can automatically sweep across the X or Y axis, enabling full-width inspection of the web. This feature minimizes operator workload while maximizing defect capture, including shade variation, misregistration, and color inconsistency.

• ✅ PPS: Programmable Position System

• Define up to 10 key inspection zones on the web. The camera will automatically shift, zoom, and analyze each point, eliminating the need for manual navigation. A game-changer for maintaining consistency over long production runs.

• ✅ Dual-Camera Configuration Available

• The Overseer 200 Dual System enables simultaneous inspection of both front and back sides of the printed web. Ideal for double-sided label printing or flexible film packaging, it offers synchronized or independent monitoring, complete with real-time split-screen display.

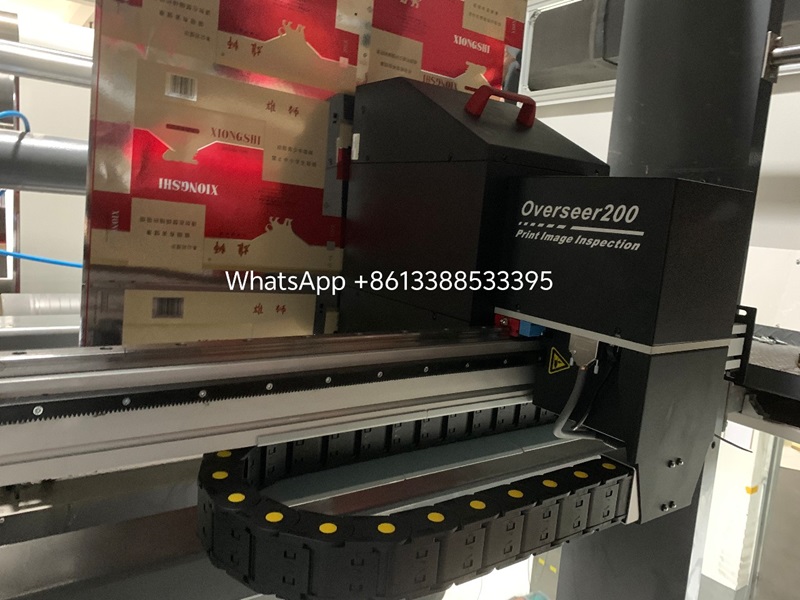

• ✅ Robust Traverse System with Silent Operation

• Built for stability at any speed, the dual-speed motorized traverse ensures smooth, silent movement and accurate alignment—even at web speeds of up to 600m/min.

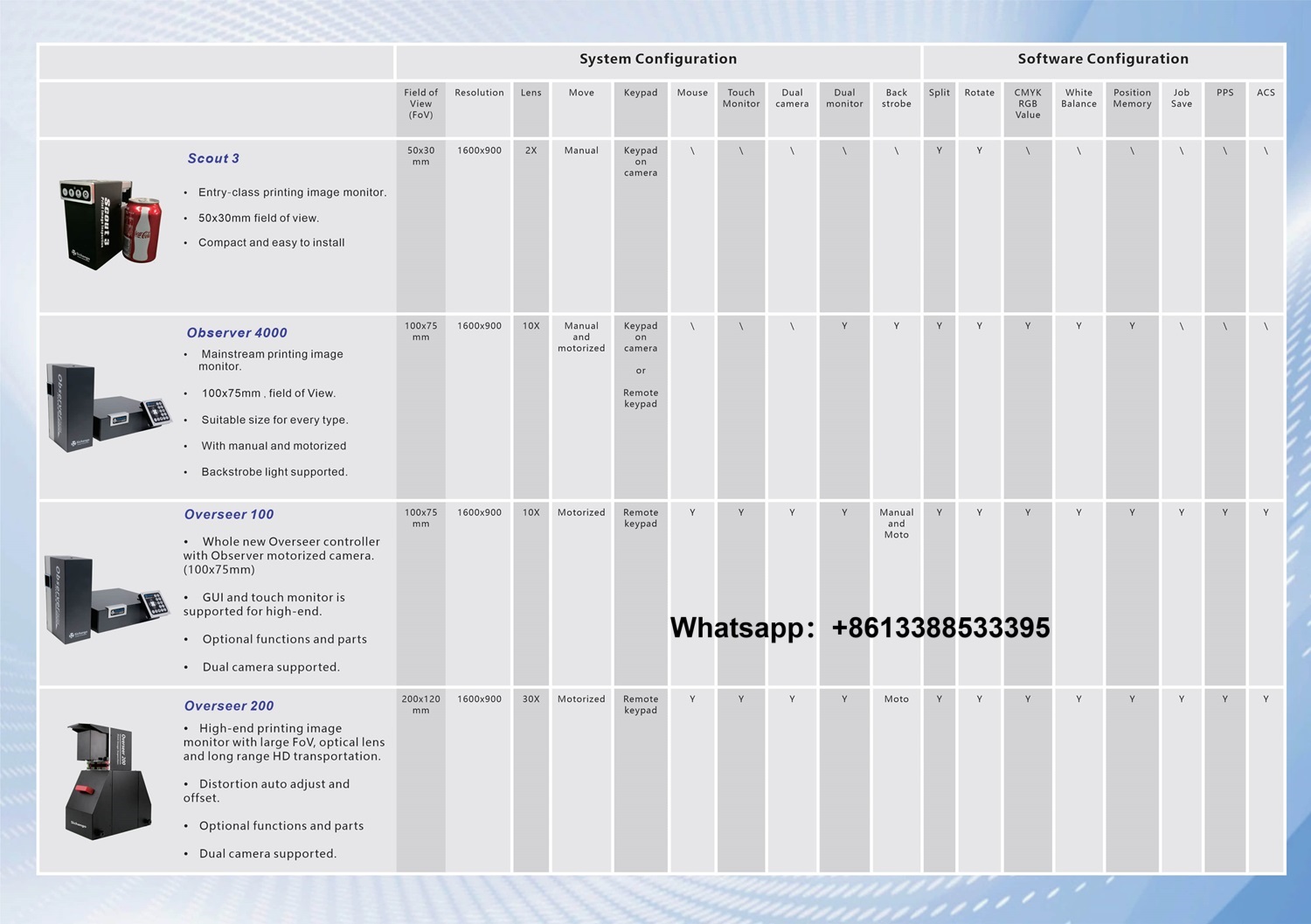

• Technical Specifications – Overseer 200 Print Inspection System

• Feature	Specification
  Camera Sensor	12 Megapixels
  Field of View	200 × 120 mm
  Resolution	1600 × 900
  Optical Zoom	20x Optical Lens (no digital zoom)
  Light Source	High-Brightness Programmable LED
  Traverse Width	Up to 6 meters
  Max Web Speed	400m/min (600m/min optional)
  Traverse Speed	150 mm/sec (dual-speed motor)
  Interface	Graphic UI with touchscreen/mouse/touchpad
  Optional Add-ons	UV Light, Backstrobe for multi-layer printing
  Security	Password-Protected Access

• 📌 Ideal for:

• Rotogravure and flexo printing

• Double-sided packaging

• High-speed label and film printing

• Precision defect detection with AI-enhanced tools

• Upgrade your production line with SICHANGO Overseer 200, the AI-powered video web inspection system built to minimize waste, detect color mismatches in real time, and ensure top-tier output on every print job.

Benefits for Rotogravure Printing Facilities

• 🔧 Reduced Waste & Downtime
  Avoid unnecessary reprints by catching defects before they reach finishing stages.

• 🎯 Consistent Print Quality
  Maintain uniformity across long print runs and across multiple machines.

• 💰 Cost Savings
  Eliminate product rejections due to unnoticed shade variations.

• 🌍 Scalable Across Multiple Presses
  Suitable for narrow web and wide web rotogravure machines in both packaging and label printing sectors.

Common Applications

• Flexible packaging (snack bags, pouches)

• Tobacco packaging

• Decorative laminates

• High-end cosmetics and personal care labels

Conclusion

If you're running high-speed rotogravure print operations and are tired of losing money due to shade mismatches or undetected print defects, the SICHANGO OVERSEER 200 is the solution you need. Its automatic web inspection system empowers your operators to spot and solve issues before they become expensive problems — ensuring consistent quality and customer satisfaction.

📞 Contact us today to learn how the OVERSEER 200 can transform your rotogravure print workflow.
