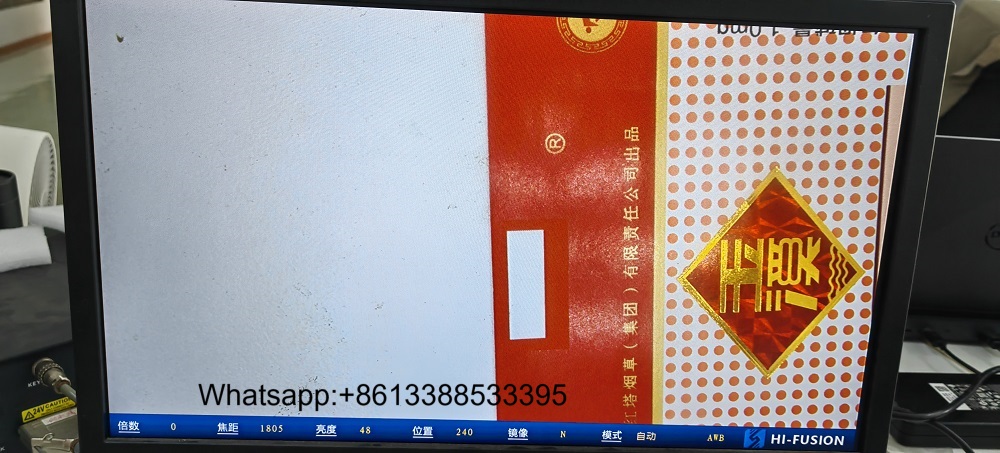

Narrow web printing inspection is widely used in industries such as labels, flexible packaging, and pharmaceutical applications. Ensuring high print quality is essential not only for regulatory compliance but also for brand consistency. This article outlines key inspection points, technologies, workflows, and advanced solutions like the SICHANGO SCOUT 3 and Observer 4000M systems.The system is working by camera video scanning,captures printing pictures,and show in monitor,you can check out.

Key Inspection Areas Of Sichango Narrow Web Print Inspection System

1. Print Precision

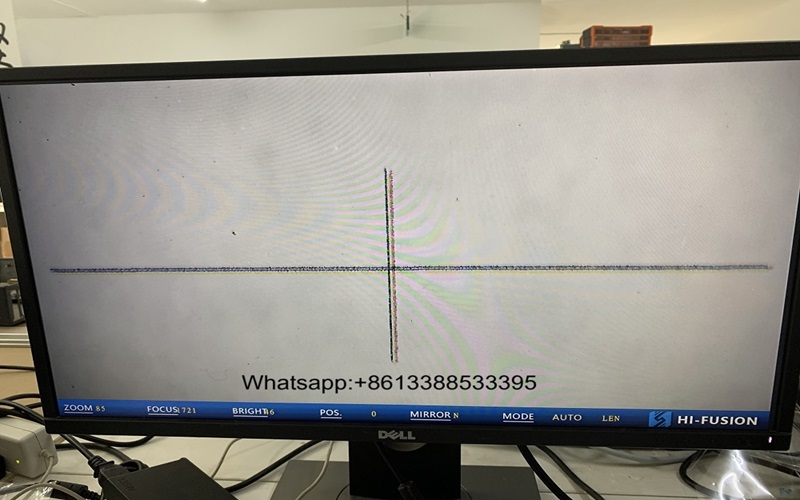

• Registration accuracy: Ensures accurate alignment of multi-color graphics. Tolerance typically within ±0.1 mm.

• Dot clarity: Identifies dot gain, smudging, or missing dots that affect color fidelity and sharpness.

2. Defect Detection

• Common defects: Scratches, ink spots, color variation, smears, and missing print areas across the entire web.

• Text & Barcode Validation: Ensures legibility and scanability of codes like Code 128, QR codes, and variable data.

3. Material & Process Compatibility

• Ink adhesion: Tested through rub resistance and solvent durability to prevent ink removal during die-cutting or lamination.

• Web tension stability: Monitors material stretch to avoid image distortion during high-speed runs.

Inspection Technologies Of Sichango Narrow Web Print Inspection System

🔍 Vision Inspection Systems

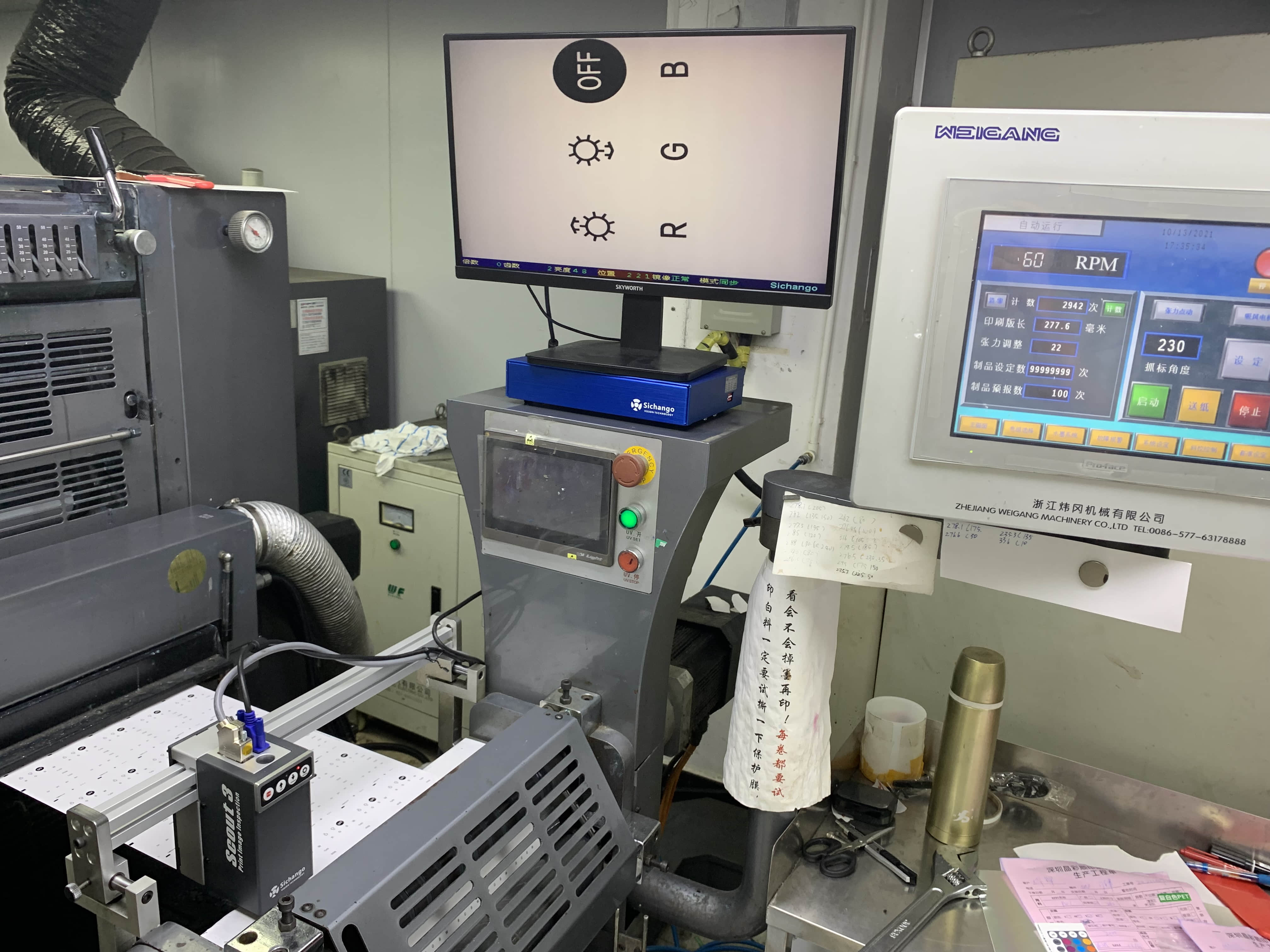

• How it works: Uses high-speed industrial cameras to continuously capture print images and compare them to a master reference.

• Advantages: Inspection speeds over 200 m/min, real-time defect marking, and automatic alarms reduce manual error rates.

🎨 Spectral Color Analysis

• Measures ink reflectance to compare against Pantone or customer color targets, ensuring precise color matching.

👁️ Manual Sampling (Complementary)

• For special finishes such as foil stamping or embossing, tactile and visual checks may still be needed for quality control.

Inspection Workflow & Use Cases

🧩 Typical Workflow

1. Pre-print: Calibrate camera and load reference image.

2. In-line print: Real-time inspection, automatic waste removal or alarm for operator intervention.

3. Post-print: Spot checks for die-cut edges and overall print quality.

🏷️ Common Applications

• Food labels: Require migration-safe inks and high clarity.

• Pharma packaging: Must comply with GMP, ensuring batch codes and expiry dates are legible.

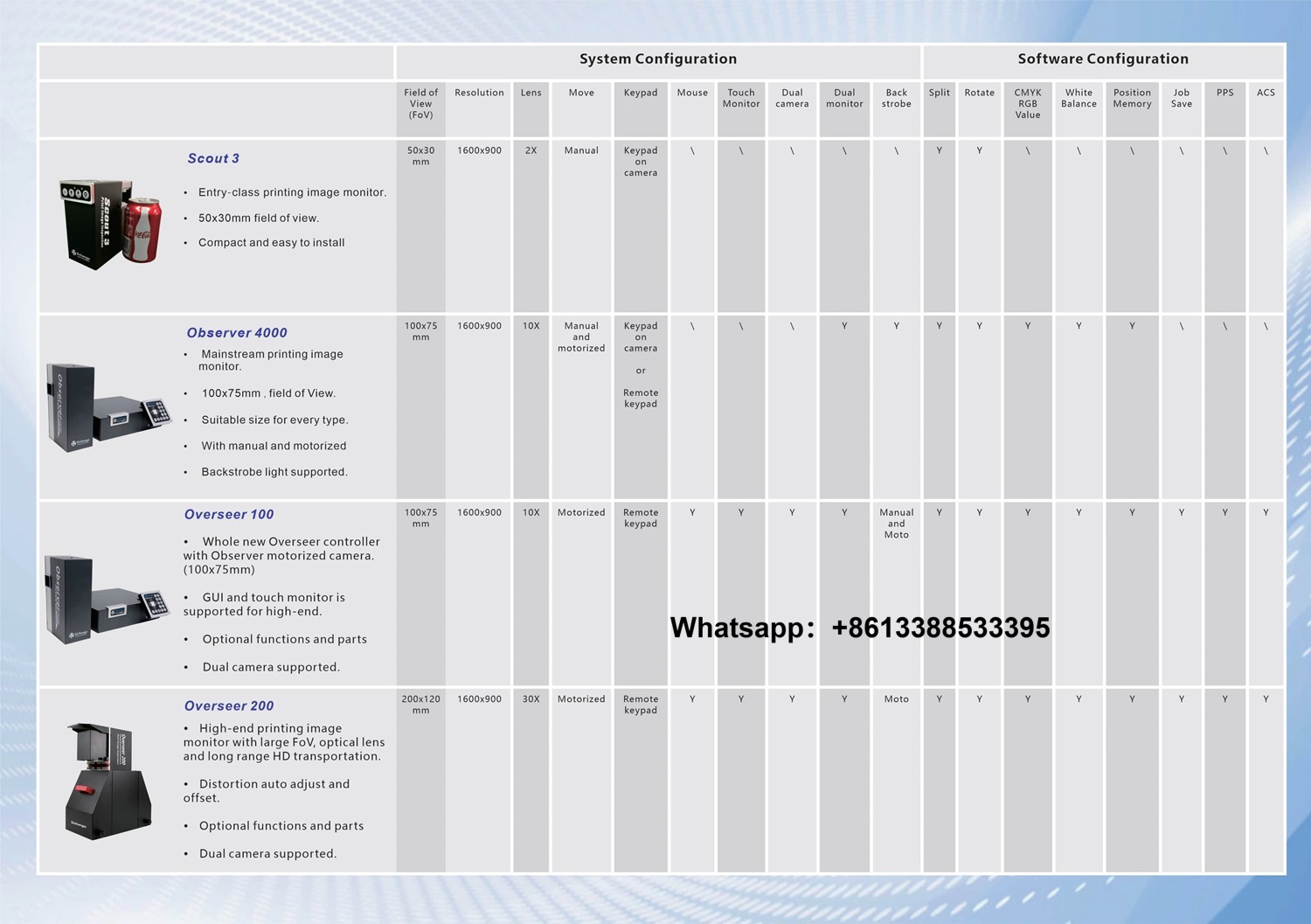

Advanced Solutions: SCOUT 3 & Observer 4000M

To meet the demands of narrow web print inspection, we recommend the following systems:

• ✅ SCOUT 3 Compact Print Inspection System:
  Ideal for label printing, barcode inspection, and small-run jobs. Compact, cost-effective, and easy to integrate.

• ✅ Observer 4000M 100% Print Quality Inspection:
  High-speed, high-precision inspection system suitable for wide and narrow web printing, with defect classification and real-time reporting.

Trends in Print Quality Control

• 🧠 AI-Powered Defect Recognition: Improves accuracy and reduces false positives with deep learning algorithms.

• 🔄 Full-Line Integration: Seamlessly connects to press control systems and ERP/MES platforms for traceable print quality data.

Need a Customized Narrow Web Print Inspection Solution?

Whether you print pharmaceutical labels, cosmetics packaging, or industrial tags, SICHANGO’s print inspection systems provide unmatched speed, accuracy, and adaptability.

📩 Contact us today to get expert advice or request a demo tailored to your specific production environment.
