100% print inspection systems SICHANGO OC 330/450 Series with Scout 5

Meeting today’s exacting print quality demands requires inspecting every inch of the web in real time. Modern label, packaging producers are investing in 100% print inspection systems to catch every misprint or defect on the fly. Advanced inline vision technology “monitors every print job in real-time” and immediately detects color inconsistencies, misprints or alignment errors. This ensures each label or package meets the highest standards before it leaves the press. Automated print inspection dramatically reduces waste – stopping errors early saves material and rework. In short, real-time defect detection and print quality control are now essential for consistent output and cost savings.

Limitations of Traditional Web Viewers

Conventional web viewer systems have helped printers for years, but they have limitations in today’s high-speed, full-width environments. Typically a fixed camera captures only a narrow field, requiring mechanical scanning or zooming to cover the whole print repeat. For example, Fife’s InPrint system offers an “Auto Scroll” feature to scan the entire repeat length (Inprint Video Web Inspection ). However, scanning means parts of the web aren’t monitored at every instant, and it can be too slow for very wide or fast presses. Traditional viewers also rely on operators to watch screens and spot errors, which is time-consuming and prone to human error. In practice, small defects on the web edges or between scans can slip through.

Moreover, legacy systems often lack automatic defect logic – they show video but do not compare against a reference or trigger alerts. In fast label and packaging production, this means printers risk shipping flawed product or generating costly scrap. In summary, old-style web viewers are not optimized for full-width, high-speed inspection: they cover only parts of the web at a time and depend on manual spotting, leaving blind spots and delays in quality control.

OC 330/450 Series + Scout 5 – Key Features

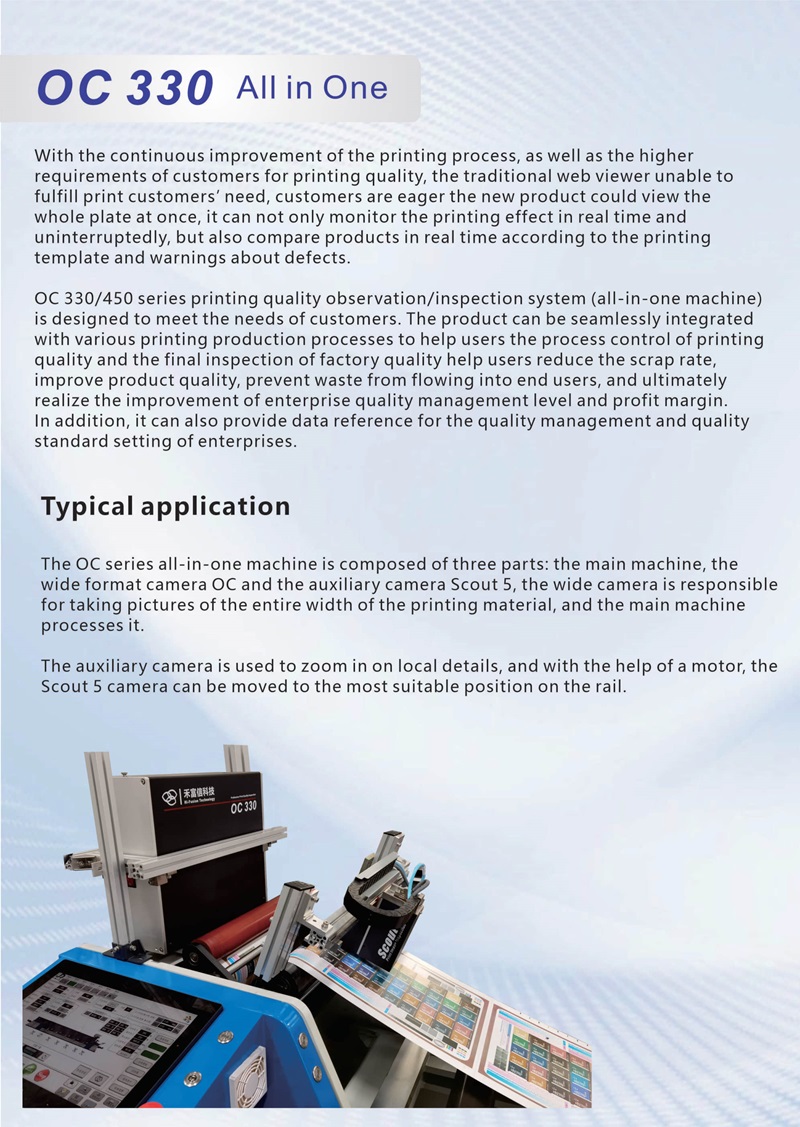

The new OC 330/450 inspection system with the auxiliary Scout 5 camera is designed to overcome these gaps. Its all-in-one design integrates wide-format and close-up imaging into a compact module – like the Fife InPrint’s “all-in-one” web viewer  – so no external PC or racks are needed. Key features include:

• Full-Width Wide-Format Camera (OC 330/450): A high-resolution camera that spans up to 330 mm or 450 mm of web width in a single frame. This means the entire substrate is captured simultaneously, even on very wide packaging lines. Unlike a scanning viewer, the OC camera provides continuous, full-width imaging at production speed. (No scrolling or mechanical movement is required.)

• High-Zoom Scout 5 Auxiliary Camera: A second “Scout 5” camera mounts nearby to zoom in on critical areas. When you need close inspection of fine details (tiny text, barcodes, or registration marks), the Scout 5 delivers a high-magnification view without slowing the line. Both cameras feed into the same inspection software, letting operators switch between a broad overview and a detailed close-up on the fly.

• All-in-One Industrial Controller: The OC 330/450 system houses the camera, CPU and lighting controls in one rugged IP-rated enclosure. As Fife describes for its InPrint, this all-in-one approach “integrates the camera, control panel, and microprocessor into a single, compact… housing” . In practice, this means simple mounting on the press and minimal space requirements – no separate computer or VME cabinet is needed.

• Powerful LED Strobe Lighting: To freeze motion at high speed, the system uses bright, long-life LED strobes synchronized to the press. This provides uniform illumination at any speed or ambient light level. The strobes are “life extension” LEDs, so they maintain consistent brightness for millions of flashes, reducing maintenance and downtime.

• Seamless Workflow Integration: The OC series is designed for plug-and-play installation. In many cases it needs only power and a video cable – no custom host PC is required. (This mirrors the Scout 3’s easy setup: “no external host required… Plug-and-play installation… operates with just a power supply and signal input”. Once installed, the system’s software can load job files with the correct templates and tolerances. Dual monitor support and split-screen views allow operators to see live video alongside stored reference artwork.

Benefits of Full-Width, Real-Time Inspection

Implementing 100% full-width inspection brings many benefits across the production process:

• Real-Time Defect Detection: By comparing every captured frame to the stored “golden” template, the system spots any deviation immediately. Modern vision algorithms can detect missing print, color shifts, registration errors or foreign particles as soon as they appear. As AVT notes, state-of-the-art inspection solutions “ensure 100% defect detection at the highest speeds”. In practice, this means no defect ever reaches the rewind roll – bad images trigger an instant alert or automatic press stop.

• Automatic Alerts and Rejection: When a defect is found, the system can trigger alarms, mark the film, or activate a reject gate. This eliminates human delay: instead of waiting for an operator to notice a blemish, the machine stops or flags the exact section the moment it appears. Early detection and action “prevent costly errors and material waste” (Solution - SICHANGO VISION TECHNOLOGY). Over time, this cuts scrap and rework dramatically – customers report significant waste reduction after adding 100% inspection.

• Higher Product Quality: Consistently using 100% inspection enforces tight quality control. Every label or package is checked against specs, so the overall defect rate drops. With automated monitoring of color and detail, prints are more likely to be within customer tolerances. This not only reduces returns and reprints, but also boosts customer satisfaction. As one industry guide explains, real-time inspection “eliminates the need for costly reprints and returns, helping you build long-term relationships with your clients” (Solution - SICHANGO VISION TECHNOLOGY).

• Reduced Operating Costs: Automating inspection speeds up the quality workflow. Operators no longer need to carefully watch every inch of the web – the system does it. This frees staff for other tasks and reduces labor costs . Better first-pass yield means less waste of inks, substrate and time. In sum, printers “reduce waste, minimize reprints, and maintain high-quality output” with a 100% inspection system

• Enterprise-Level QC and Data: The OC 330/450 system can link into your plant network for standardized quality control. It supports industry-standard interfaces (for example, a universal OPC-UA link is common on modern systems to export inspection data and connect to external sensors. Every defect, parameter and run history can be saved in a database for analysis. This makes it easy to enforce company-wide print quality protocols or adhere to standards (ISO 9001, etc). In effect, the system helps standardize quality: the same checks and tolerances are applied to every job, shifting QC from a shop-floor guess to a digital, traceable process.

Applications in Labels, Packaging and Non-Woven Products

The OC 330/450 with Scout 5 is suitable for any web-print process that needs flawless output:

• Label Printing (Narrow-Web): Whether it’s pressure-sensitive labels, shrink sleeves or direct-to-shape labels, even narrow web presses benefit from 100% inspection. All types of label defects – misregister, missing print, code errors – are caught. As AVT’s Helios system advertises, this delivers “100% print inspection for labels and narrow web” to identify defects on every piece.

• Flexible Packaging: High-speed gravure or flexo lines for films and laminates often run at wide web widths (330 mm, 450 mm or more). The OC cameras cover these full widths in one shot, making it ideal for pouches, bags and wrap films. It will flag pinholes, gels, coating defects or contamination on any part of the film. In fact, OCS’s web inspectors cite that detecting “all types of irregularities in films… and non-wovens” is critical for final product quality .

• Corrugated and Folding Cartons: For large-format printing or pre-print on corrugated web, the full-width image ensures that defects in any panel are noticed. This is especially valuable for multi-color box jobs where errors are costly.

• Non-Woven Products: Many non-wovens (hygiene wipes, medical masks, napkins, geotextiles) run on wide rolls and require perfect consistency. The OC system is well-suited here – for example, irregularities like holes, stains or fiber clumps in hygiene fabrics can be as visible as defects in film . With 100% inspection, all such web defects are found before converting. (OCS specifically lists hygiene/nappy films and non-wovens among targeted products , highlighting this industry’s need.)

• General Web Inspection: Any roll-to-roll process (digital inkjet, narrow web flexo, offset presses, etc.) can use the OC 330/450. It is especially beneficial for one-pass printing where errors cannot be fixed later, and for high-mix, short-run jobs where manual inspection is impractical.

Seamless Integration & Installation

Despite its advanced capabilities, the OC 330/450 series is engineered for easy integration into existing lines. Installation and setup take minimal effort:

• Plug‑and‑Play: Like modern smart cameras, the OC series typically needs only power and a video signal. No special computer rack or PC is required on the press.

• Standard Connectivity: The system includes Ethernet or fieldbus connections for factory networks. Many printers use OPC-UA to link vision systems with PLCs or MES software . OC’s interface can send job data and inspection results upstream, and receive press-speed or job-change signals from downstream. This allows automated setting of parameters for each job and logs the inspection outcomes in your quality system.

• Industrial Ready: The enclosure is built for the press environment (vibration, dust, etc.). The 24-bit color imaging, combined with strobe lights, means it can handle reflective films and high-speed motion. Dual monitor outputs or remote HMI modules let the line operator view images and controls at the console, while a network PC in the office can review records.

• Scalability: Multiple OC units and Scout 5 cameras can be networked for multi-station setups. For large enterprises, this means consistent QC across multiple presses or sites, all managed through a unified software platform.

In summary, the OC 330/450 series with Scout 5 provides 100% print inspection with state-of-the-art technology. It overcomes the blind spots of older web viewers by capturing the entire web in real time. It gives label and packaging printers, as well as non-woven converters, the tools for rigorous print quality control: real-time defect detection, automatic alerts, and enterprise-level data tracking. The result is fewer errors, higher yield, and confidence that every label or package meets specification.
