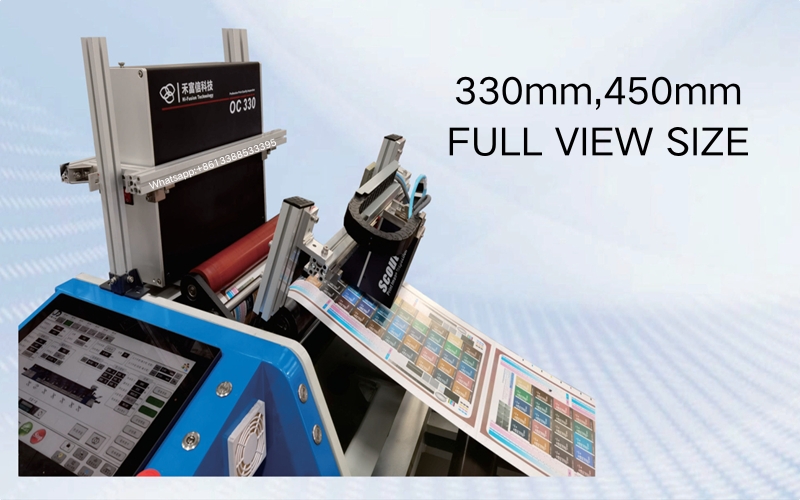

Our Inspection System For Printing Machine is designed for real-time monitoring and printing quality inspection across all types of machines, including flexographic, rotogravure, offset, label, rotary, and digital presses. It provides web inspection for narrow, medium, and wide applications, ensuring precise defect detection during high-speed production.

What Is a Web Video Inspection System?

During high-speed printing operations, the human eye cannot accurately capture or analyze the quality of rapidly moving images. That’s why an advanced web video inspection system is essential.

This system uses high-resolution camera inspection technology to convert fast-moving web images into clear, stabilized still frames. Operators can zoom in on details to detect fine defects such as:

• Color deviations

• Misregistration

• Streaks or scratches

• Printing voids or missing ink

Key Benefits of an Inspection System for Printing Machines

• Real-Time Defect Detection: Identifies errors instantly, reducing waste and reprints.

• Image Magnification & Split-Screen Viewing: Compare live print output with reference templates for quick adjustments.

• Improved Quality Control: Ensures accurate registration, color consistency, and flawless print finishing.

• Versatile Applications: Ideal for label printing, flexible packaging, narrow web, and high-speed roll-to-roll printing.

By implementing a printing machine inspection system, operators gain precise control over print quality, minimize material loss, and deliver premium output that meets customer standards.

👉 Invest in a web inspection system for printing machines today to boost production efficiency and achieve superior printing results.

Cameras of Inspection System For Printing Machine

10 million high-resolution CMOS camera Shooting range:

Minimum 13mm*9.7mm

Maximum 200mm*150mm

Maximum printing speed: 1200m/min

Power supply voltage: DC24V/2.0A

Rail length: 300mm-3000mm (customizable)

Standard 24-inch high-definition display Resolution:1280X720 1920X1080

Inspection System For Printing Machine

System features :

♦ Line motor-move traverse
♦ RGB/CMYK VALUE DETECT
♦ Image Rotate
♦ Image Patrol Shooting
♦ Image Split and Freeze
♦ Image Sharpen with Gamma
♦ Image Roll and Slow Shot
♦ Printing Speed & length measure
♦ Optical multiple & zoom Saving

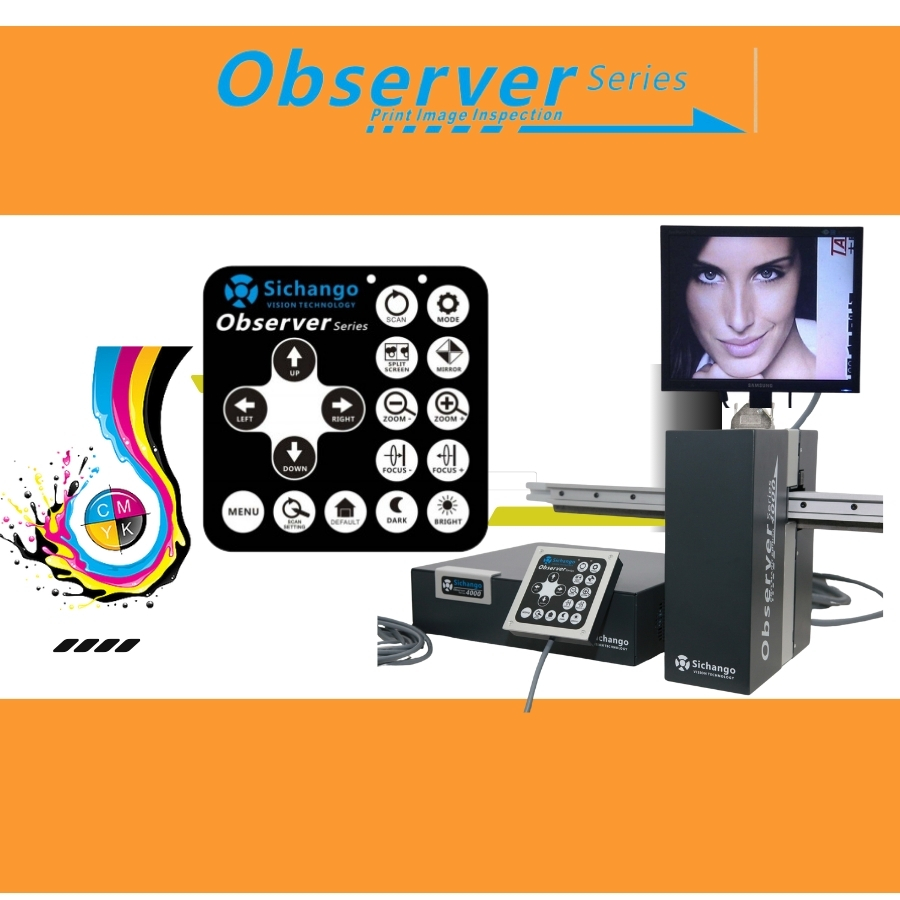

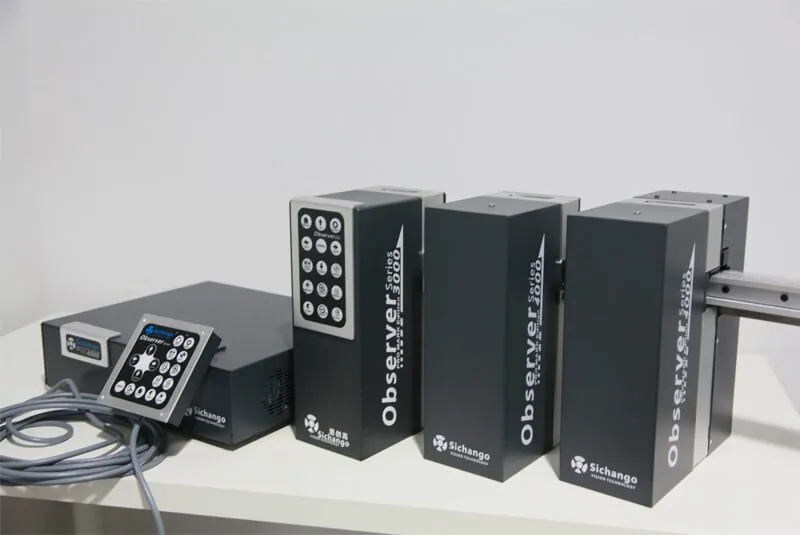

Observer 4000M Inspection System For Printing Machine – Advanced Printing Quality Control Solution

Inspection System For Printing Machine Configuration Overview

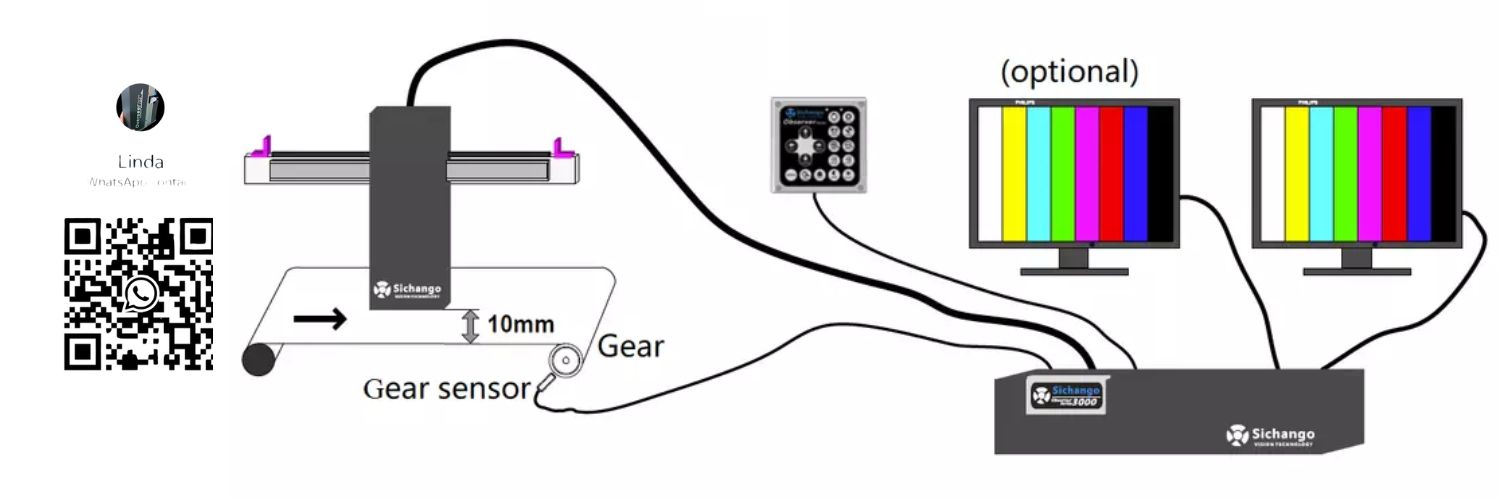

The Observer 4000M series is a professional Inspection System For Printing Machine designed with ergonomics and efficiency in mind. It supports both integrated and remote operation with dual keyboard options—one directly on the camera unit and one on the controller or press panel. Dual-screen functionality enhances operator convenience and monitoring accuracy across all rotary press environments.

Motorized Traverse System

Designed for wide-format printing presses or installations with high mounting positions, the motor drive system allows the camera to travel smoothly along a 3-meter traverse or longer. This ensures seamless, real-time image capture in flexographic and gravure printing environments.

High-Speed CMOS Industrial Camera

At the core of the system is a high-speed CMOS industrial camera developed with Sichango’s proprietary technology. Compact and stable, the camera features advanced VLSI chipsets that deliver crystal-clear, high-definition images for accurate defect detection.

30X Optical Zoom with Digital Precision

All Observer series systems come equipped with a 30X optical zoom lens, enabling magnification from 1X to 100X. Combined with powerful digital image processing algorithms, this offers unparalleled clarity and sharpness, even for micro defects and registration errors.

Advanced Patrol Shooting and Image Freeze

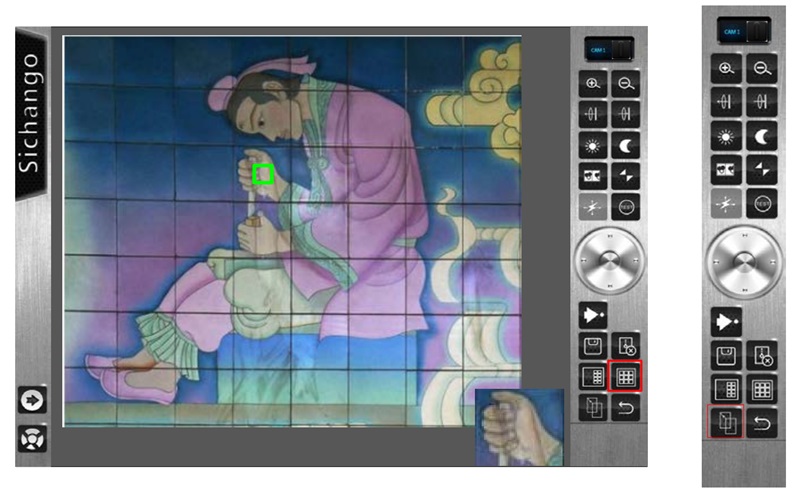

The patrol shooting function enables automatic image capturing as the camera traverses across the web. With support for image freezing, rotation (X, Y, and XY axes), and real-time image split (left frozen, right live), users can easily compare and analyze printing consistency.

CMYK Value Detection & Real-Time Color Monitoring

Integrated CMYK and RGB value detection displays real-time ink density and color shifts directly on the screen. This helps operators detect inconsistencies caused by ink viscosity or material variations.

High-Speed Response & ROI-Focused Features

Observer 4000M offers up to 10 images per second and operates efficiently at 400m/min, outperforming other systems in the market. Features like auto scan, strobe protection, and user-friendly interface are tailored for ROI-focused investments in printing and paper industry visual inspection.

For all type rotary press

Observer series can fit for various of rotary press such as drum press,combination rotary press and gravure rotary press, etc.

Specification:

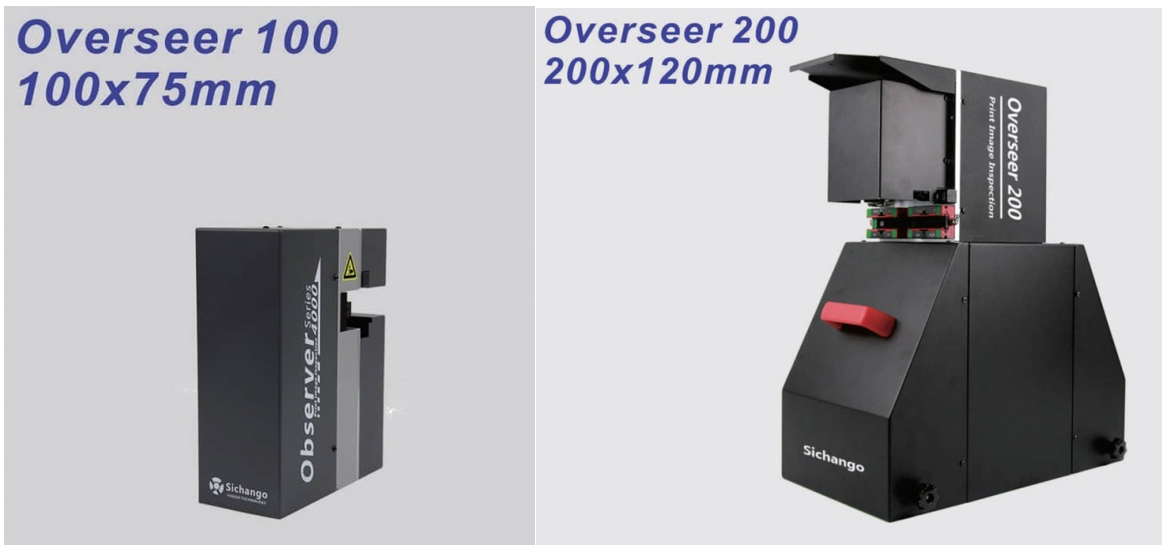

Dual cameras working for OVERSEER 100 MODEL Inspection System For Printing Machine

Opitional with back strobe for Inspection System For Printing Machine

Option for Backstrobe and UV

Observer 3000/4000 series could add manual or

motorized backstrobe on back of web for double

or multiple printing scenario.It using high bright

-ness and long lifetime LED light source for multi

-ple or thick web.

Additional special light source like Uv,foil, vanish

could be added to system.

Position Storing

CMYK/RGB Value

User can store position on web running direction

Observer series integrating with CMYK/RGB

in system including zoom, focus, web position etc,

value detective function creatively.When user

and recall the position and display it on monitor

move cursor on web, system will detective the

with simple operating.

CMYK/RGB value on monitor in real-time,it will

help user to check color changing due to ink.

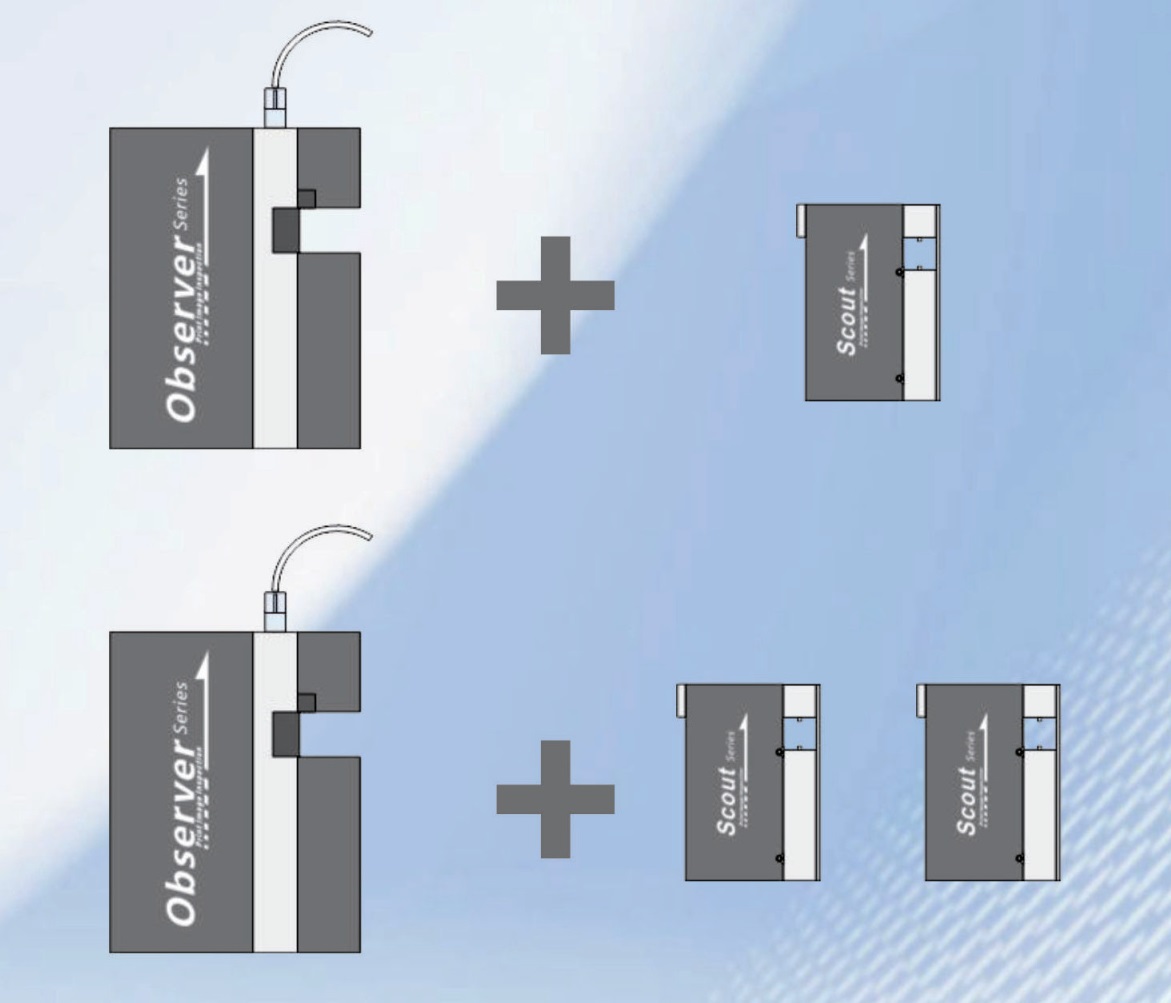

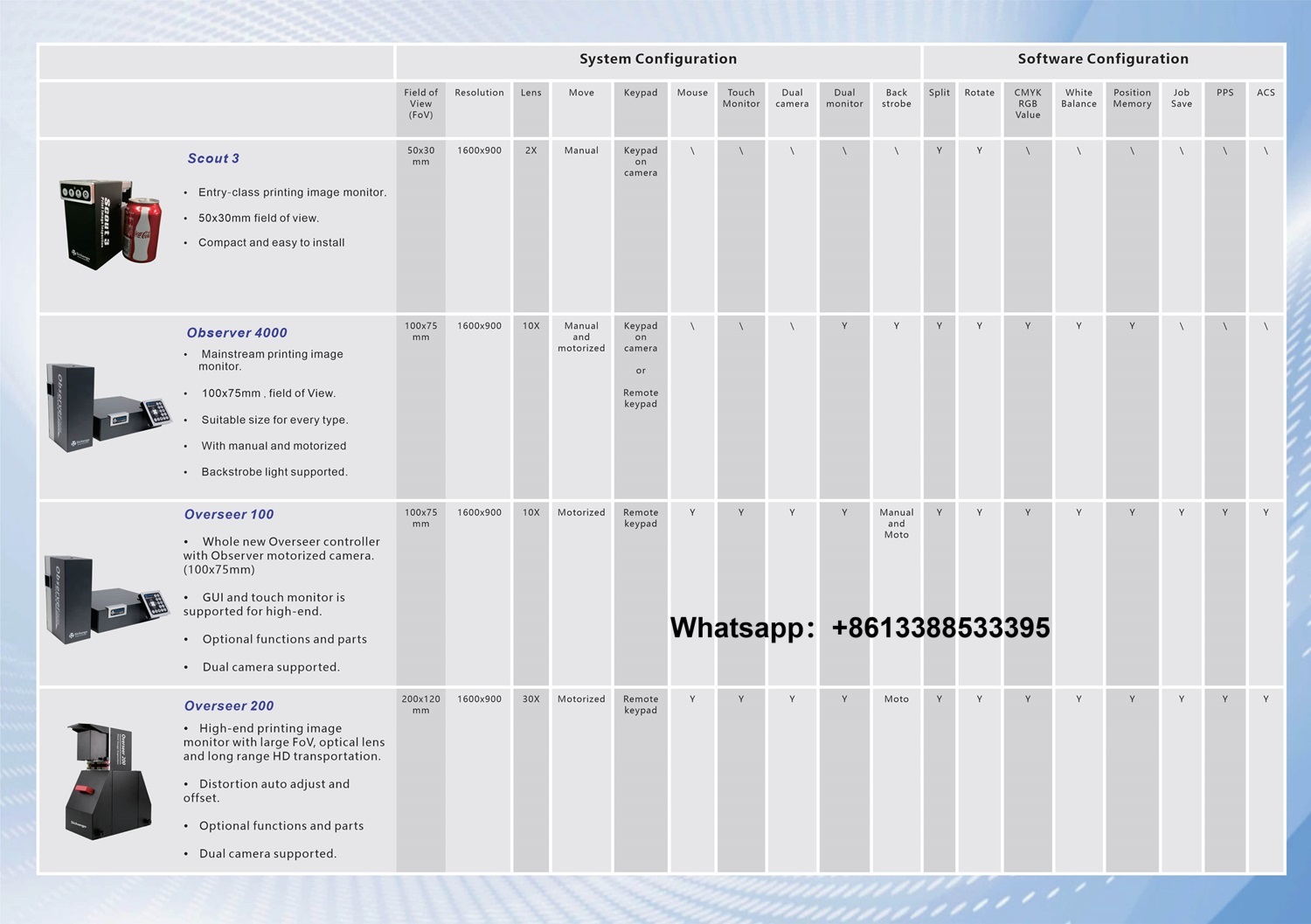

Different combinations of web inspection systems camera

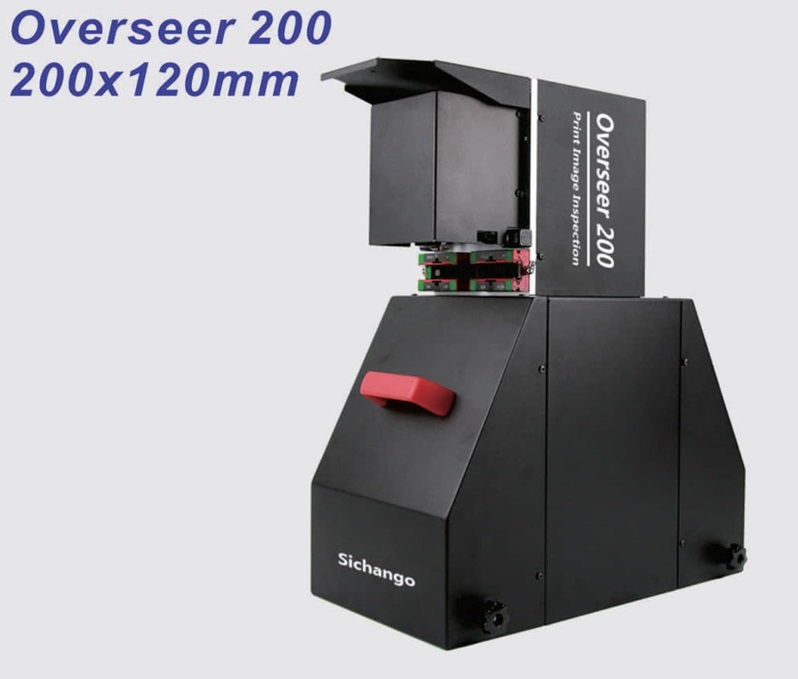

Inspection System For Printing Machine OVERSEER 200 series

Overseer 200 Series – Premium Web Inspection System for High-End Printing Quality Control

The Overseer 200 series is a cutting-edge, all-in-one printing quality checking web inspection system, specifically engineered to meet the high-precision demands of today’s fast-paced printing industry.

Key Features:

High-Pixel Imaging with Advanced Hardware Platform
This system integrates a high-resolution camera and a newly optimized flat hardware platform. With a user-friendly touchscreen graphical interface and enhanced lighting system, the Overseer 200 offers smooth operation, powerful functionality, and crystal-clear image quality for top-tier inspection needs.

Exceptional Image Clarity & Flexible Field of View
The system delivers vivid, delicate visuals for detailed analysis. Whether users need a conventional or ultra-wide 200x120mm field of view, Overseer 200 meets various vision requirements by allowing more of the printed layout to be observed at once.

Dual Camera Collaboration
Perfect for front-and-back overprint inspection, die-cutting alignment, and dual-sided packaging applications. The dual-camera system supports both fixed-point cruise (PPS) and full layout scanning (AutoScan) on either side of the web, ensuring comprehensive print quality control.

20X Optical Zoom Lens
Unlike digital magnification, our premium optical lenses provide sharp, distortion-free imaging. This enables accurate observation of ink dots, fine text, registration marks, and color fidelity—ideal for printing applications that require high precision and detail.

Custom-Engineered LED Lighting & Camera Design
To address the growing complexity of printed materials, Overseer 200 uses professionally designed LED light sources and high-performance cameras. This ensures optimal color reproduction, material adaptability, and image clarity. The lighting can be fine-tuned based on substrate type, helping capture the best possible inspection results.

Smart Features:

Fixed-Point Cruise (PPS)
Easily configure the system to monitor critical zones such as logos, serial numbers, decimal points, and register marks. Users can define camera positions, capture images at each stop, and adjust stay duration and image size for a fully customized inspection workflow.

Full Format Scan (AutoScan)
With the growing trend of high-speed and wide-format printing, Overseer 200 is designed to keep up. The AutoScan feature allows rapid scanning across the entire web, helping detect micro-defects and layout issues without interrupting production.

Function in detail

• Fully Graphic User Interface(GUI)

• Zoom in/out

• Screen Split with left/right, up/down/image in image.

• Image with distortion compensation

• AutoScan in multiple routes

• PPS in Gallery management.

• Support touch monitor, touchpad, mouse.

• Job management

• Motorized back strobe

• Dual camera mode

• Password protection

Image Sensor：Overseer 200, 12 Mega

Output Resolution：12 Mega:1600x900

Field of view：200 x120mm

Optical Zoom：Overseer 200, 20x Optical

Light source：LED

Dimensions LxWxH：440x240x540mm

Camera move speed：

Dual speed 150mm/sec.

Max.running speed > 400m/min (Max. 600m/min in theory)

Max. traverse width ：6m (depends on logistics)

The Overseer 200 series offers a reliable and intelligent solution for manufacturers seeking automated, real-time print inspection on narrow or wide web applications. Whether paired with Scout 3 for compact setups or integrated with other printing lines, this system ensures top-notch quality and production consistency.

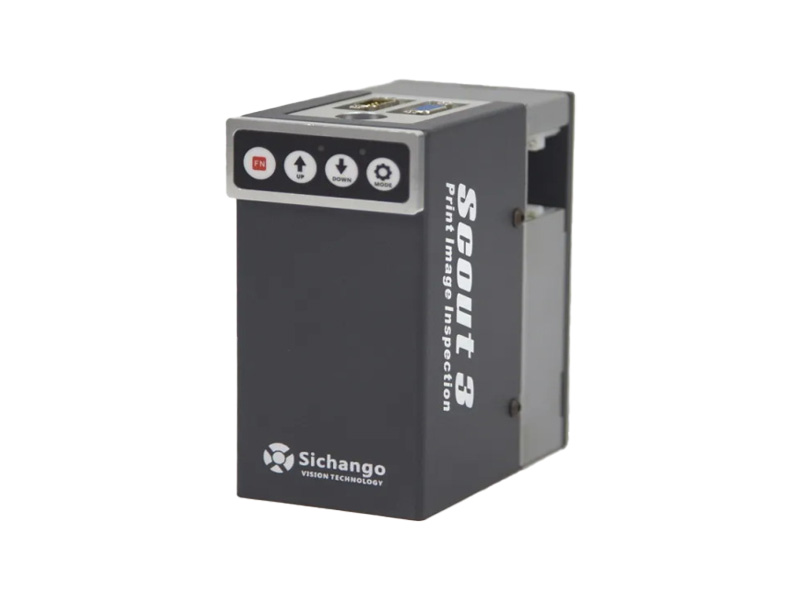

Scout 3 mini camera for register lines

👉 Learn more about our SCOUT 3 compact inspection system or explore the full Observer 4000M high-speed inspection system for flexible configurations.

Here is our some models for your choose:

Can be installed in any place or your machine to meet different printing job requests.
