Printing Quality Checking System for Printing Machine With Motor Moving Camera Inspection 4000M

Advanced Web Video Inspection System for Printing Machines – Observer 4000M by Sichango

The Observer 4000M is a next-generation web video inspection system specifically engineered for real-time, high-speed print quality monitoring across all types of printing presses—including flexographic, rotogravure, offset, digital, label, and rotary printing machines. Ideal for narrow, medium, and wide-web applications, it combines ultra-clear imaging, intelligent analysis, and industry-proven stability.

✅ What is a Web Video Inspection System?

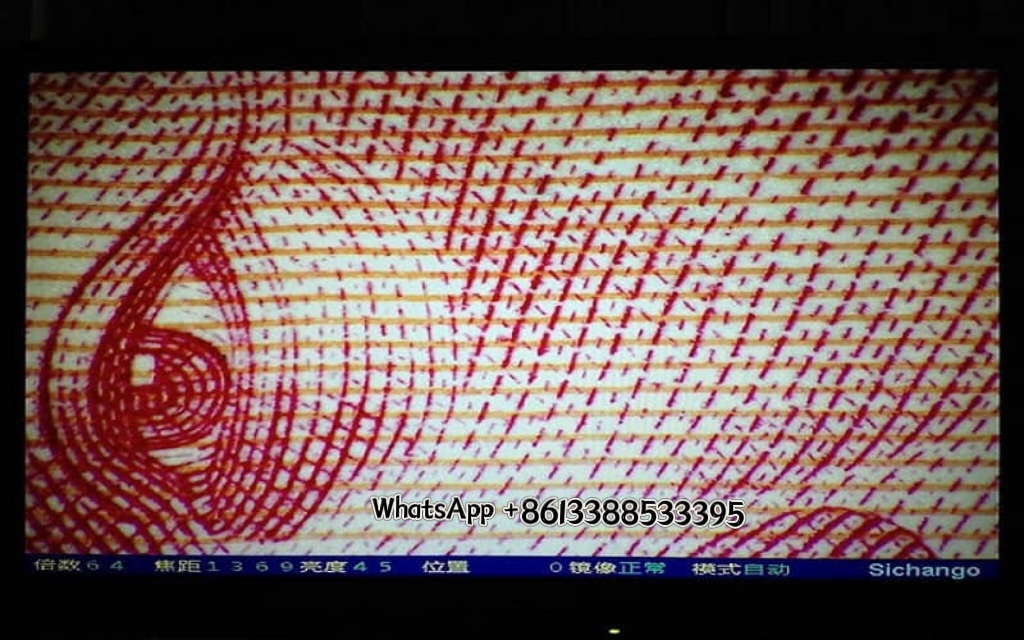

When printing presses run at speeds exceeding hundreds of meters per minute, visual print inspection becomes nearly impossible with the naked eye. The Sichango Observer 4000M solves this by transforming fast-moving printed images into high-resolution stills. This enables operators to detect minute print defects like registration shifts, color inconsistencies, and dot loss, improving print quality and reducing waste in real time.

📸 Observer 4000M Camera Specifications:

• Sensor: 10MP high-speed CMOS industrial camera

• Zoom: True 30X Optical Zoom with advanced digital enhancement (1X–100X)

• View Range: 100mm × 75mm (Standard),

• Resolution: Output 1280×1024 pixels

• Image Capture Speed: Up to 10 frames/sec

• Max Print Speed: Up to 400 m/min

• Motor Drive Speed: 52 mm/sec with dual-speed control

• Rail Length: 300mm to 3000mm (Customizable)

• Power: Global input 110–240V AC, 50/60Hz

• Unit Size/Weight: 110×238×290mm / 9kg

💡 Key Features of the Observer 4000M Web Inspection System

🔍 1. Real-Time Print Quality Control

The system captures sharp images during press runs and displays real-time feedback on a dual-monitor setup—ideal for mounting at the unwind and rewind ends of a press.

🎨 2. Built-in RGB & CMYK Color Value Detection

Integrated colorimetric analysis allows real-time monitoring of color density and variation, enabling accurate ink control and color consistency.

🧠 3. Advanced Image Processing

Functions include image freeze, patrol shooting, split-screen comparison, XY-axis rotation, and gamma-based image sharpening.

🌐 4. Industry-Proven Stability

Sichango’s proprietary VLSI chip and bend-resistant cabling ensure long-term durability and accurate performance—even under demanding 24/7 production environments.

🌟 5. Long-Life LED Lighting

The LED strobe lighting system uses high-brightness, industrial-grade lamp beads with a lifespan of over 5 years, reducing maintenance costs significantly.

🔁 6. Memory-Based Position Recall

Store and recall camera positions, zoom settings, and focal lengths for repetitive jobs—enhancing workflow speed and operator efficiency.

🧩 7. Modular Add-ons

Supports backlight boxes for multi-layer or double-sided printing and optional UV, varnish, and metallic effect detection light sources.

🔧 Engineered for All Press Types

Whether you’re operating a narrow-web label press, a wide-format gravure machine, or a digital hybrid press, the Observer 4000M integrates seamlessly. Its ergonomic remote keyboard and multi-language interface make it easy to use worldwide.

Why Choose Sichango Observer 4000M?

• ✅ Optimized for modern high-speed printing environments

• ✅ Designed for industrial durability and long-term ROI

• ✅ Supports dual-monitor, global voltage, and custom installation options

• ✅ Backed by over 10 years of industry expertise

Looking for a high-performance, customizable, and user-friendly web inspection solution?
The Sichango Observer 4000M is the ultimate tool for precision printing control and defect detection.
